Short Description:

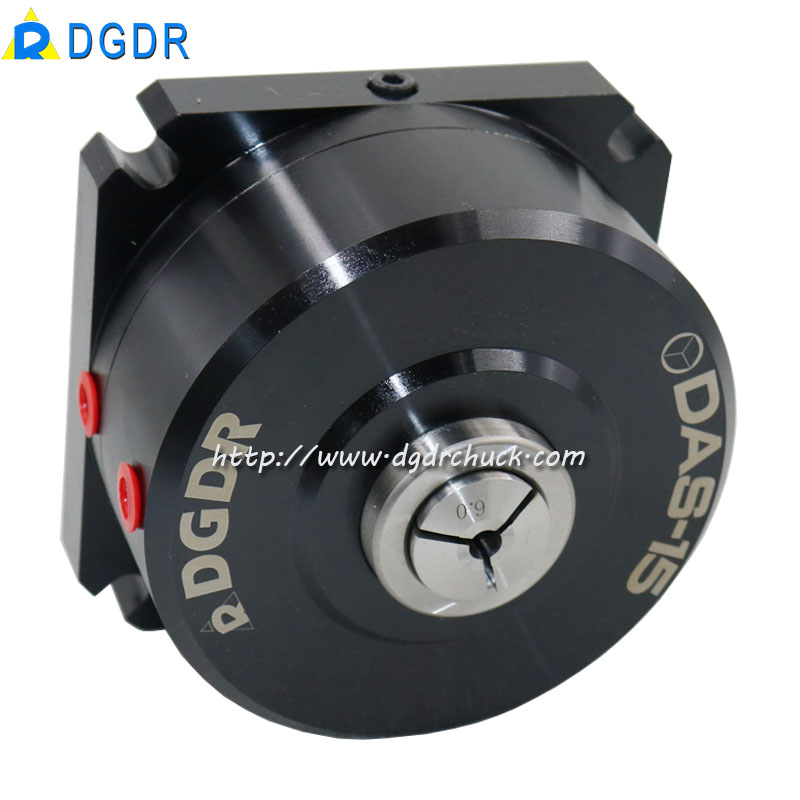

Stationary mini air collet chuck DAS-15 for tapping machine drilling machine automatic equipment fixed pneumatic chuck

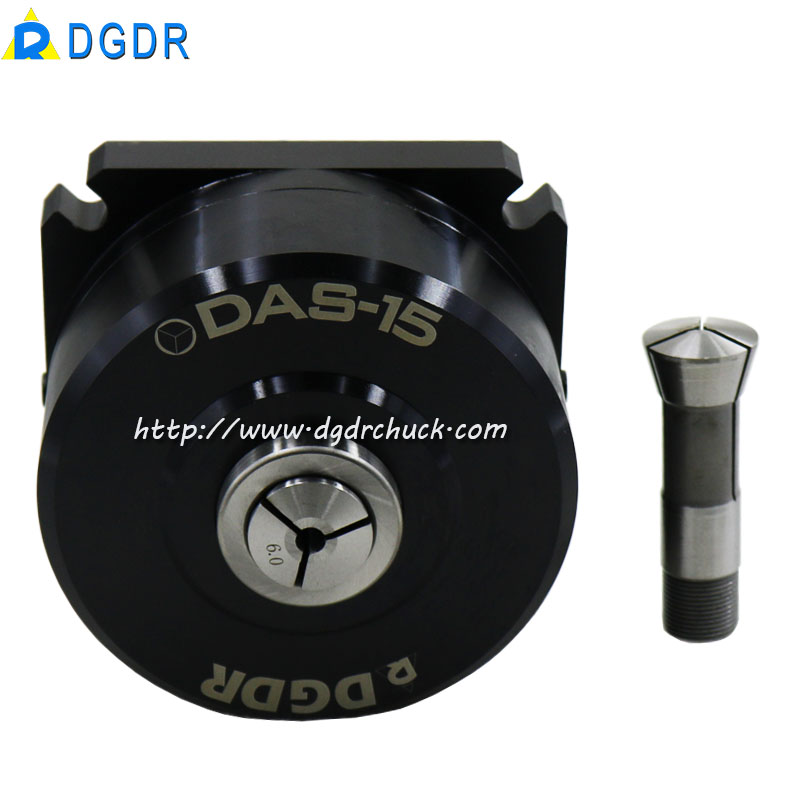

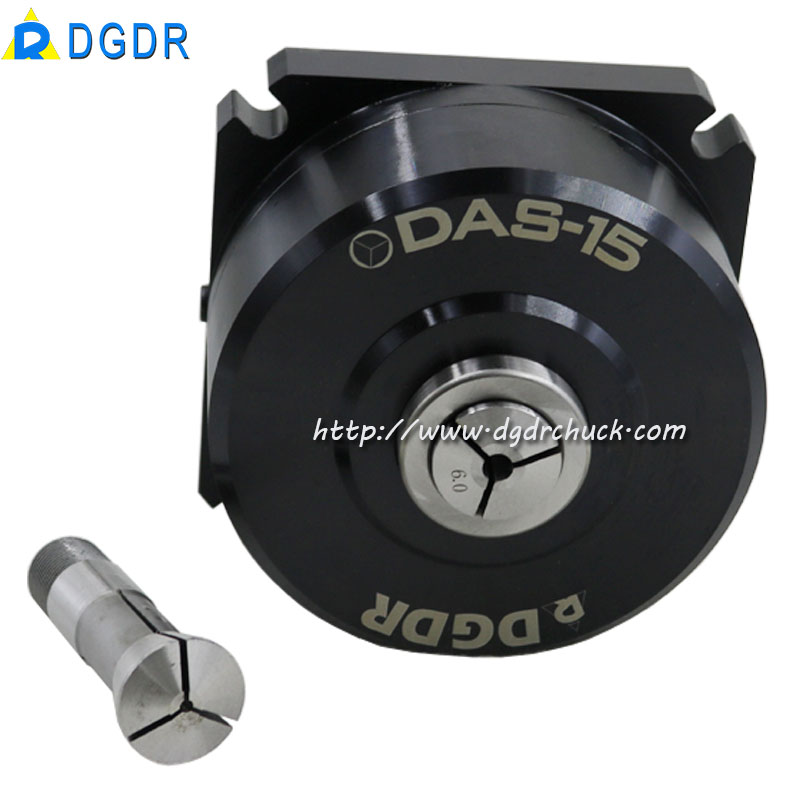

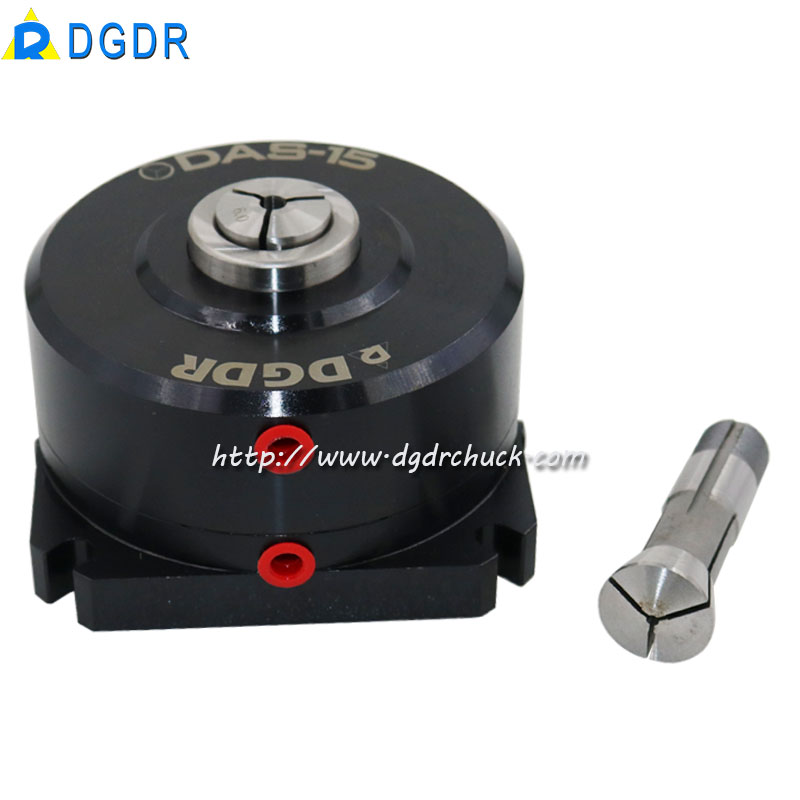

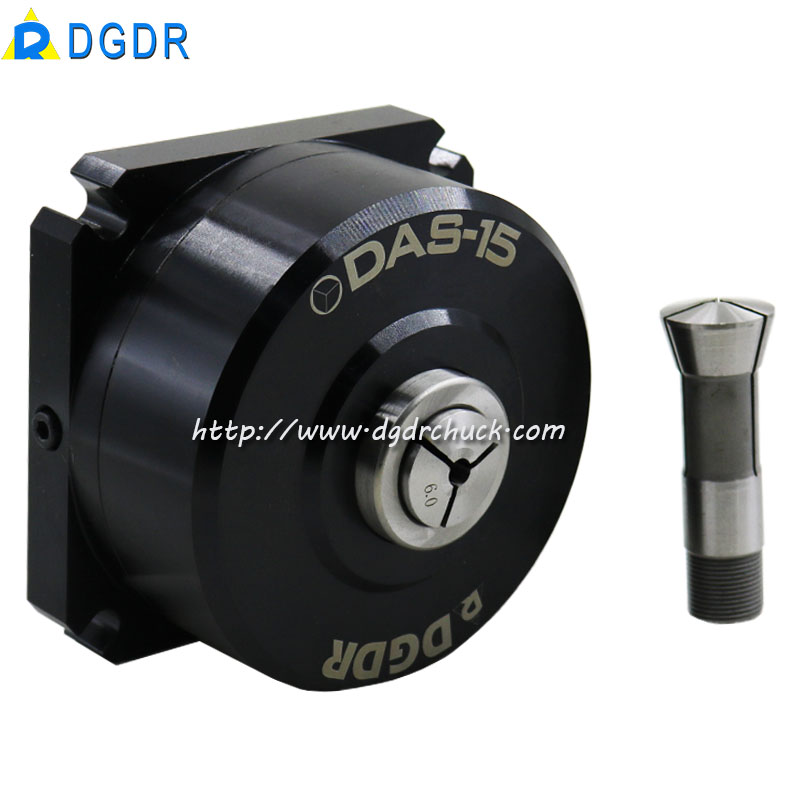

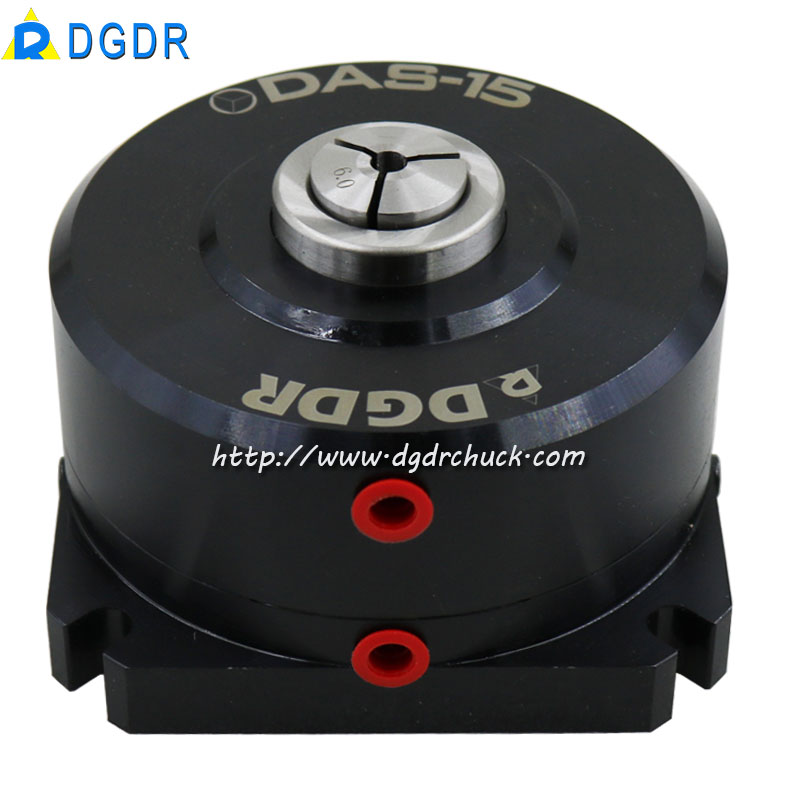

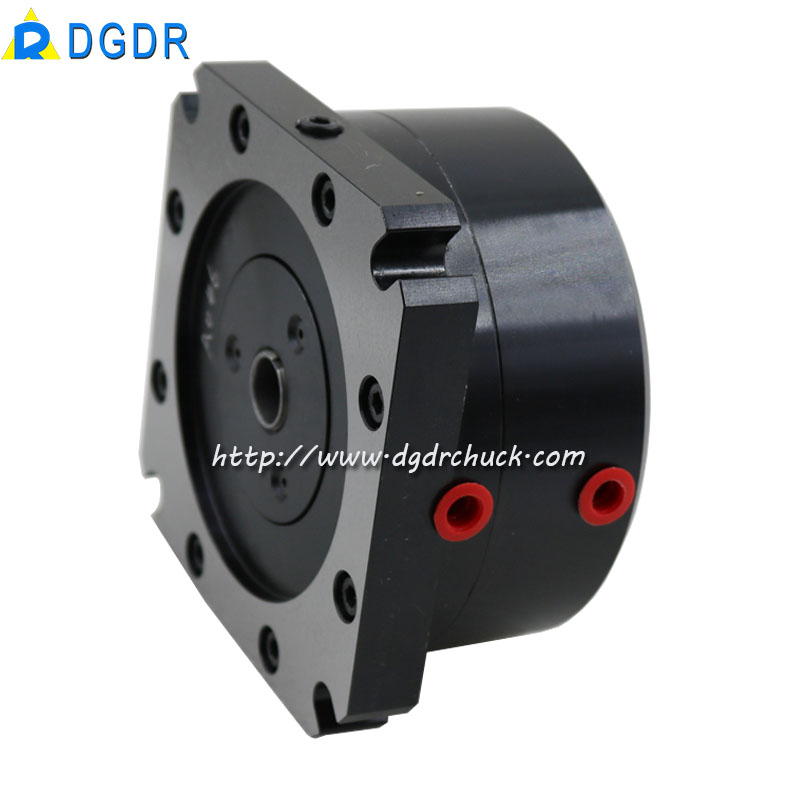

Product Name: Stationary mini air collet chuck

Item NO: DAS-15

Type: pneumatic chuck

Material: steel

MAX clamping size: 15mm

repeatability accuracy: within 0.015MM

match collet: YB-15

Operation pressure: 3-15KG/cm2

gripping force: 1200kgf

packing size: 20*20*15cm

G.W: 5kgs

usage: Dental equipment,tapping machine, Automation equipment
