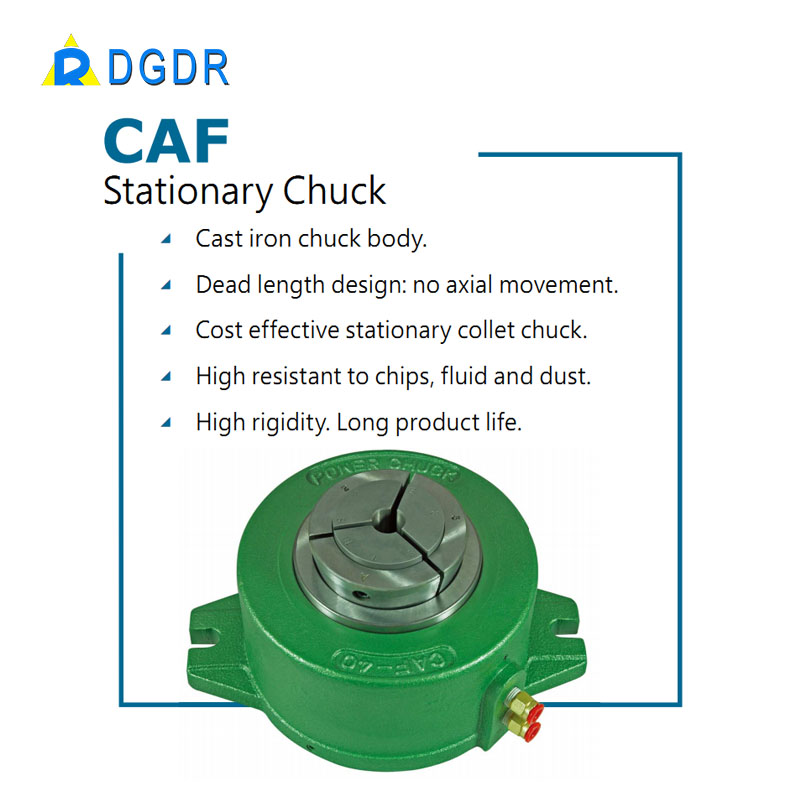

CAF-70 double piston stationary chuck for tapping machine

Short Description:

CAF-70 double piston stationary chuck for tapping machine Products Introduction CAF Stationary Pneumatic Collet Chuck (Vertical Collet Chuck) is designed for drilling or tapping process. The CAF Stationary Collet Chuck features low-cost design and is high resistance to cutting chips, fluid and dust. This collet chuck can be operated under harsh environment for long hours without any malfunction. CAF also is widely applied on multi-shaft or multi-way drilling/tapping machines in full-automati...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece
  • Supply Ability: 1200 Piece/Pieces per Month
  • Product Name: Stationary chuck
  • Repeatability accuracy: 0.015mm
  • Material: steel
  • style: CAF-70
  • piston: double
  • operation pressure: 3-8kgs
  • G.W: 25kgs
  • usage: digital controlled lathe machine, precision grinder machine
  • Product Detail

    Product Tags

    CAF-70 double piston stationary chuck for tapping machine

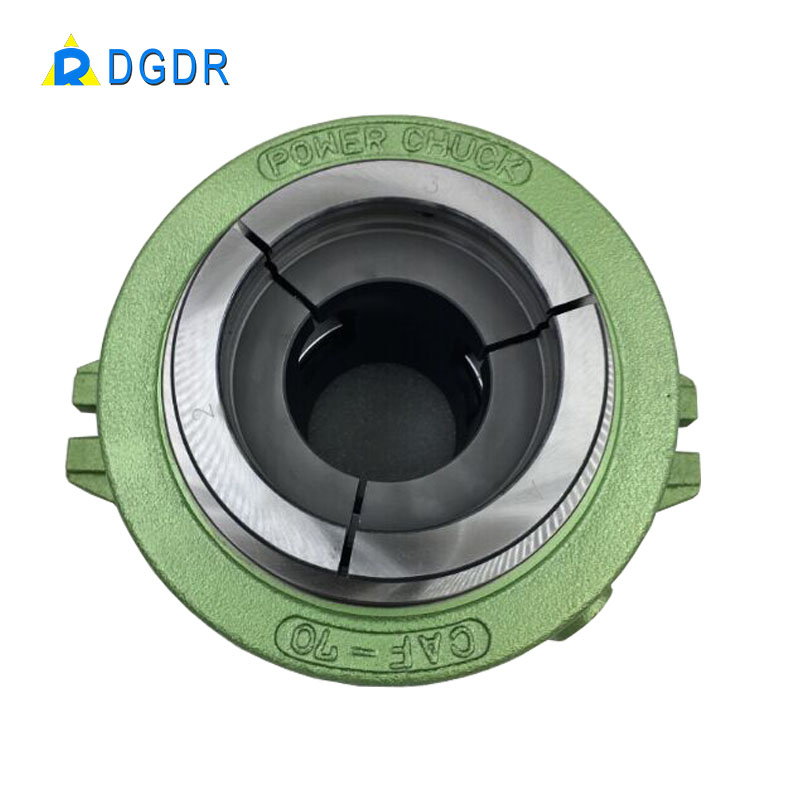

    CAF-70-6

    Products Introduction
    CAF Stationary Pneumatic Collet Chuck (Vertical Collet Chuck) is designed for drilling or tapping process. The CAF Stationary Collet Chuck features low-cost design and is high resistance to cutting chips, fluid and dust. This collet chuck can be operated under harsh environment for long hours without any malfunction. CAF also is widely applied on multi-shaft or multi-way drilling/tapping machines in full-automatic or semi-automatic.

    Application Range
    CAF Stationary Collet Chuck is applied as work holding
    for CNC tapping centers or rotary SPMs (special purpose machines)

    Products Advantage
    Cast iron collet chuck body.
    Pneumatic actuated collet chuck.
    High accuracy. High rigidity. Long product life.
    High resistant to cutting chips, fluid or dust.
    Chuck force-opening design ensures no work-part jamming.
    Double pistons design (CAF-40, CAF-70) to enhance chucking force.

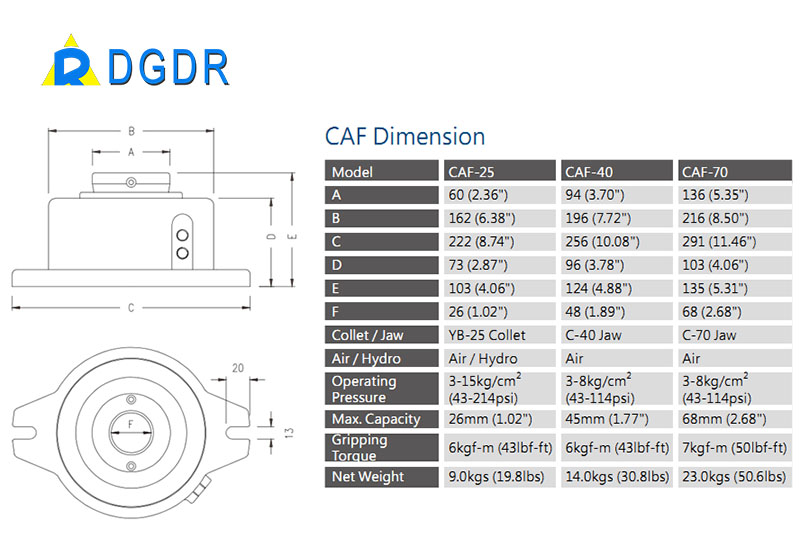

    CAF-25-14

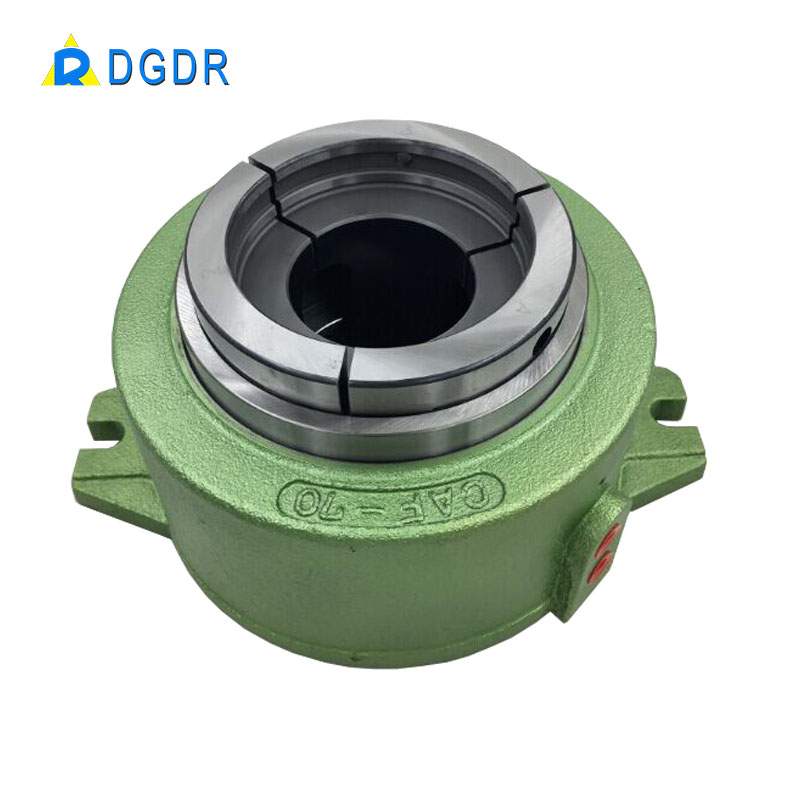

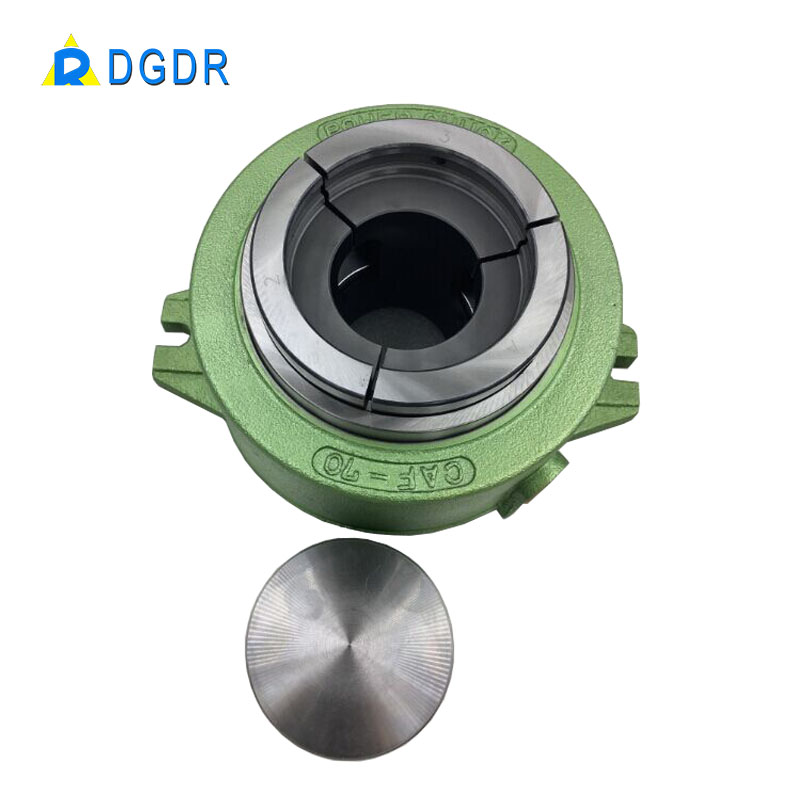

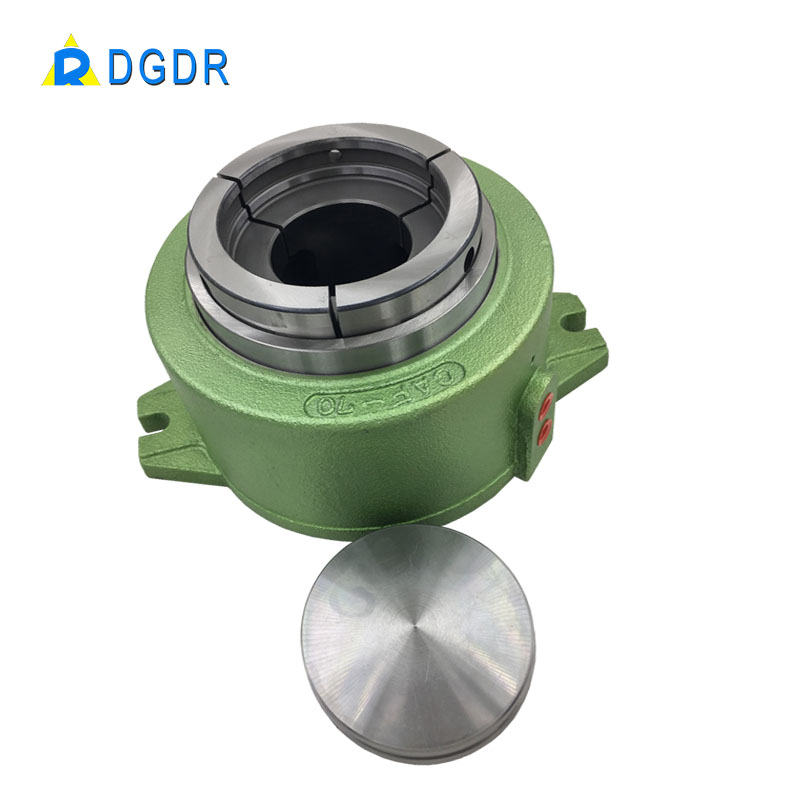

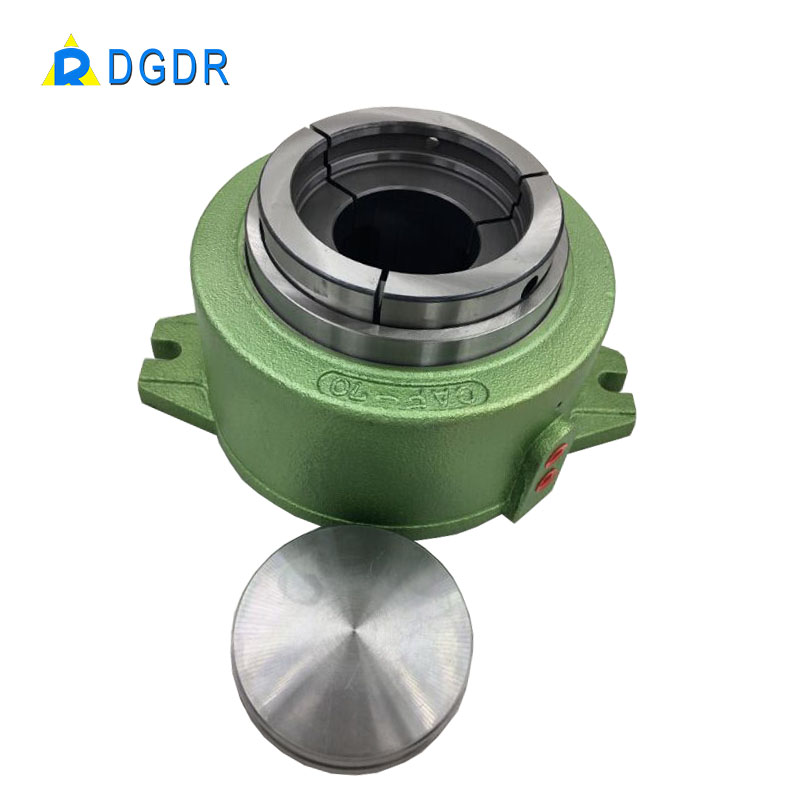

    CAF-70-5 CAF-70-4 CAF-70-3 CAF-70-2 CAF-70-1

    1.包装资料 1.仓库-1 1.客户 1.证书

    CAF-70 double piston stationary chuck for tapping machine
