Short Description:

small model manipulator automatic pneumatic collet chuck DAS – 20SS for welding pneumatic chuck air pressure chuck

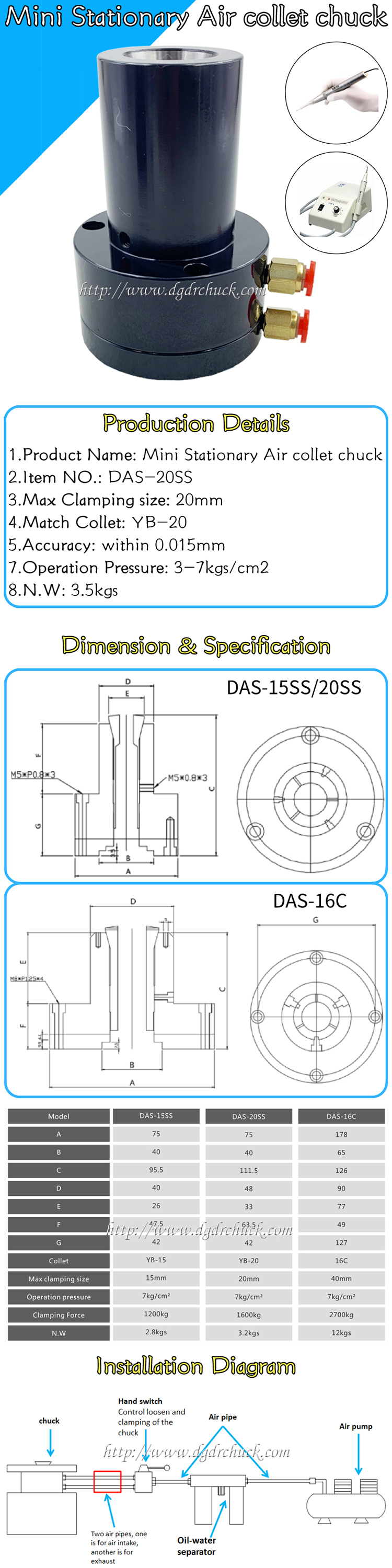

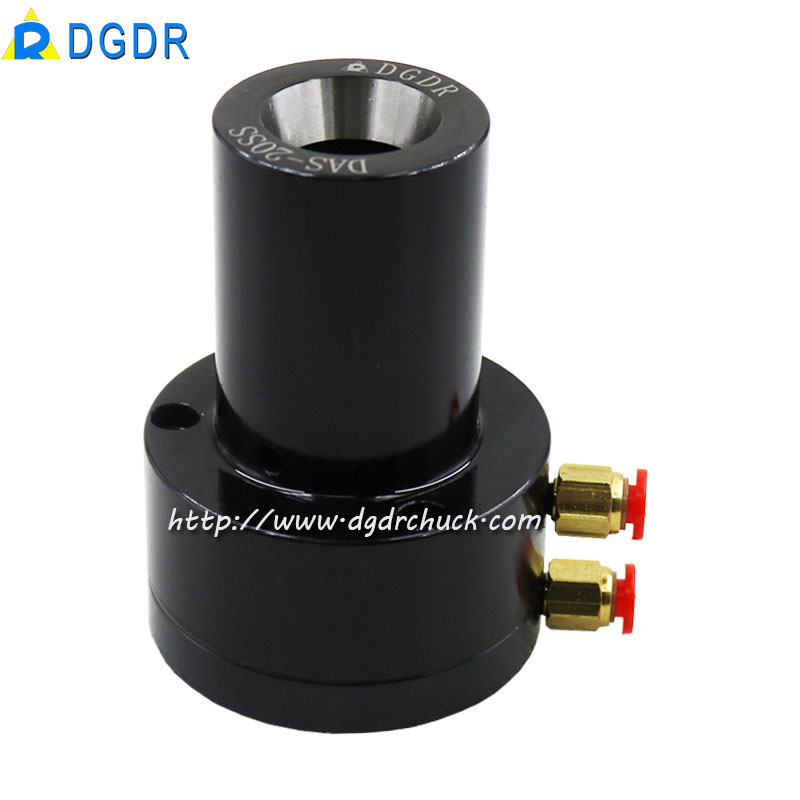

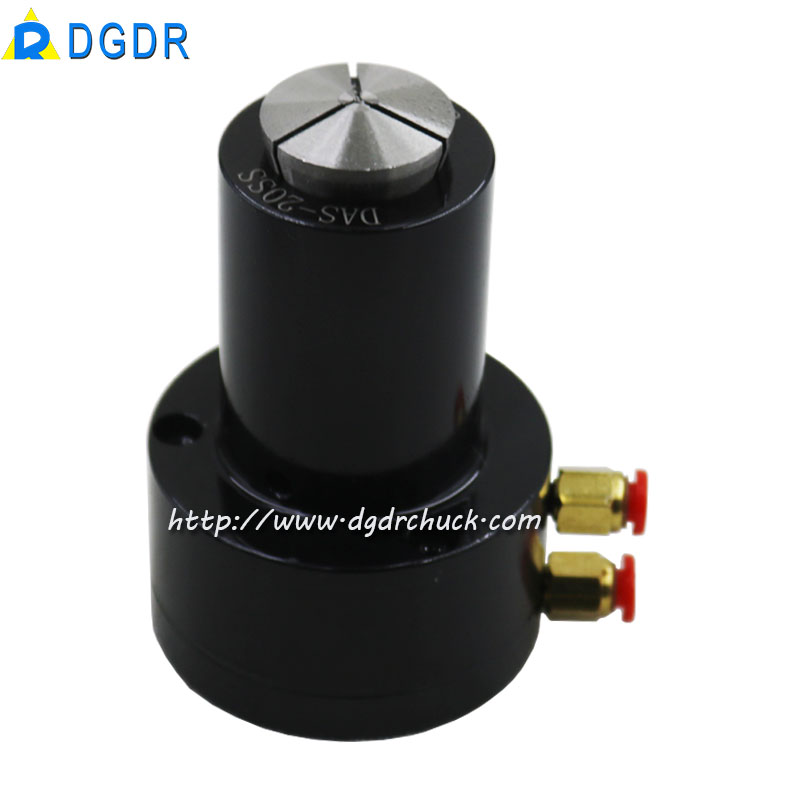

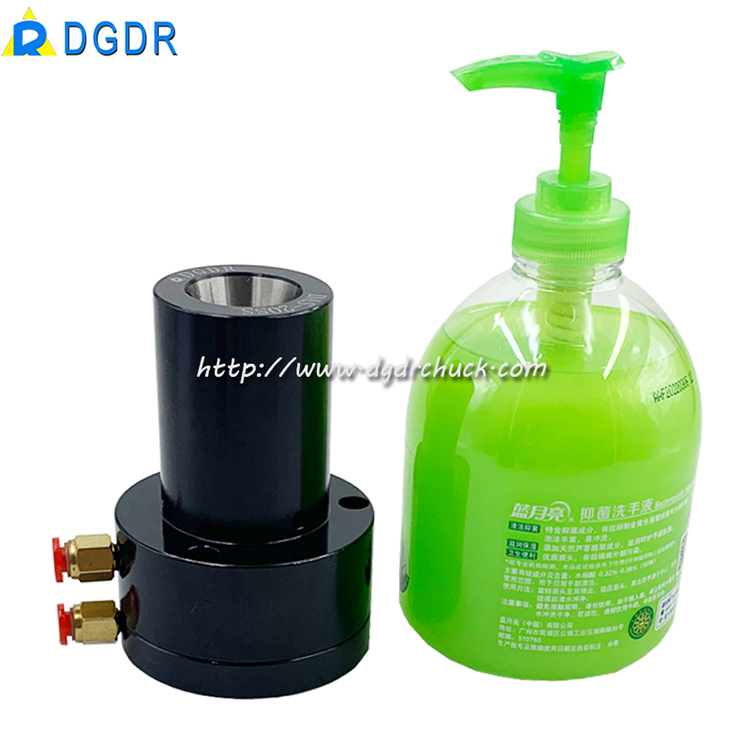

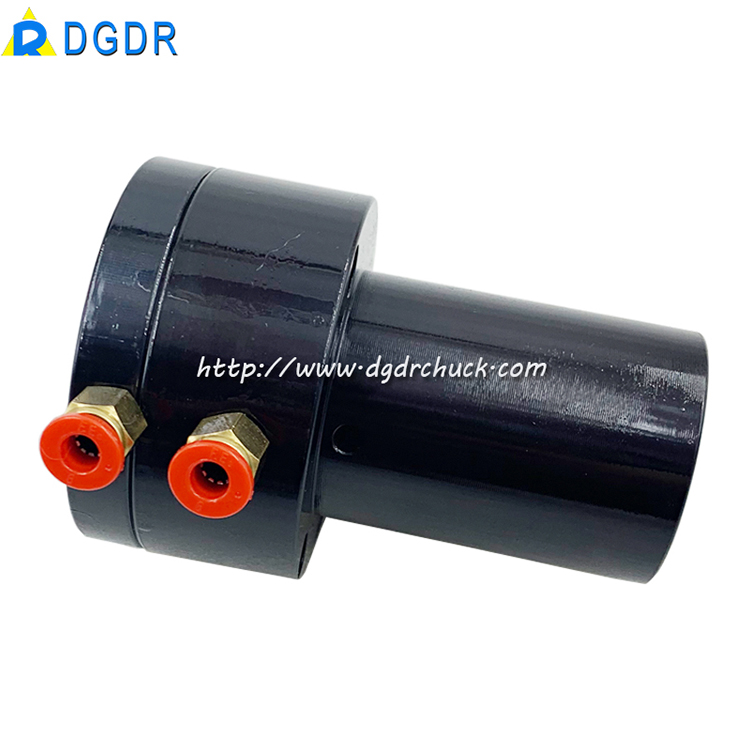

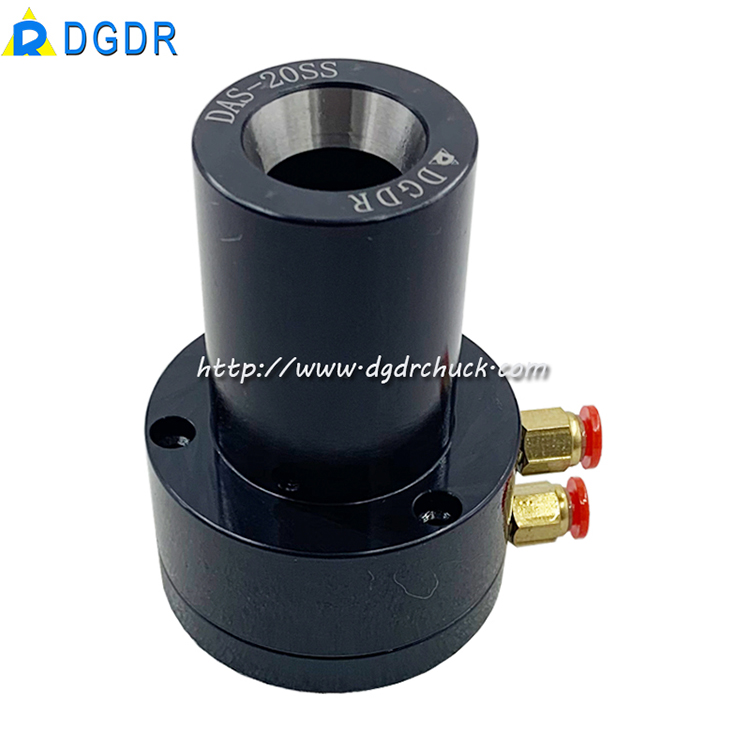

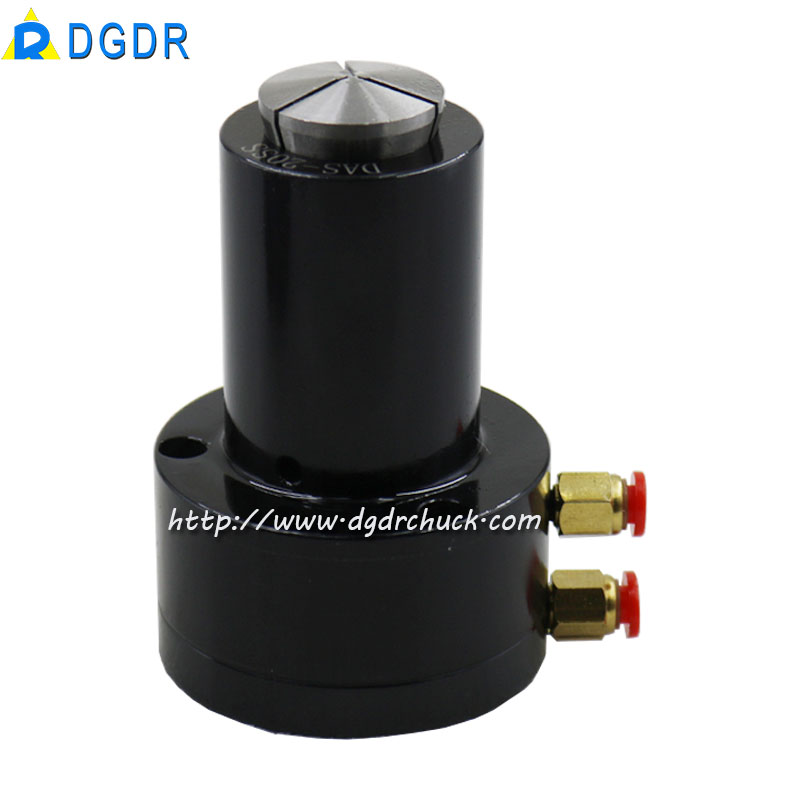

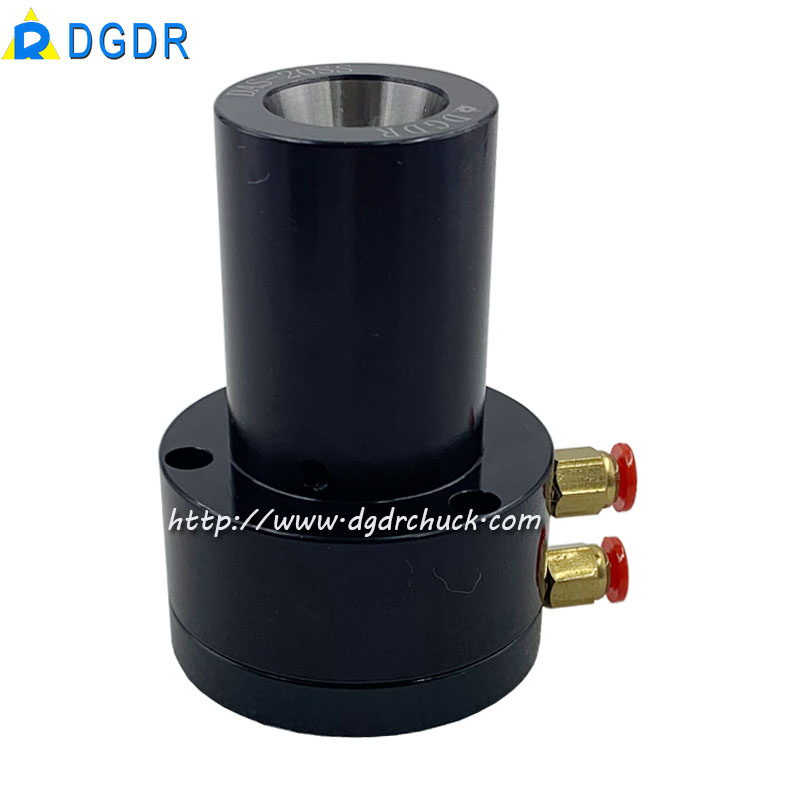

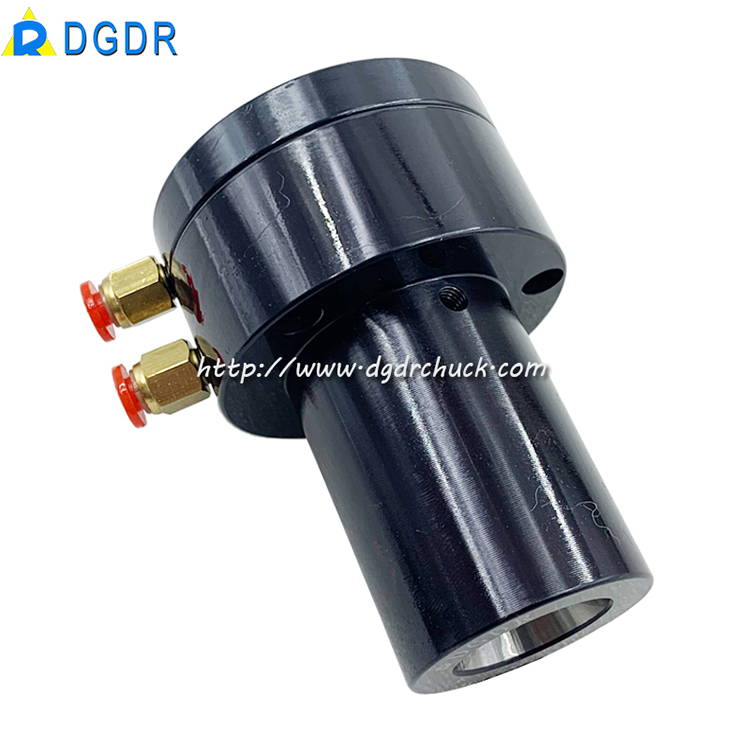

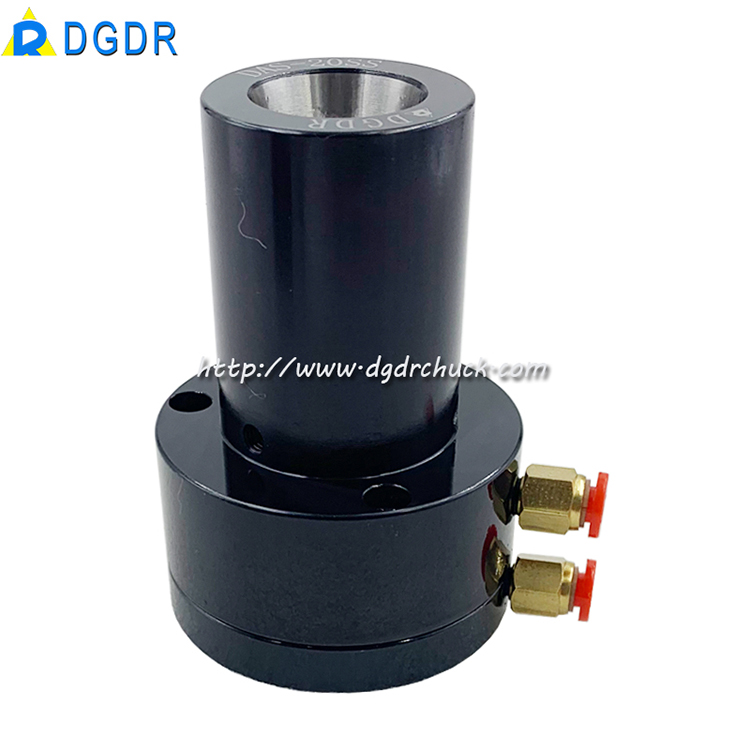

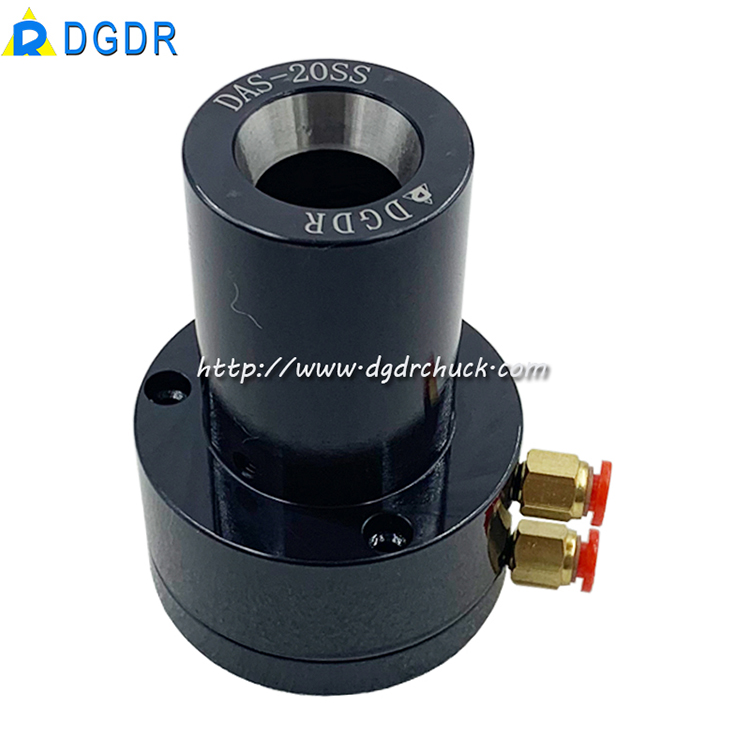

Product Name: back pulled mini stationary collet chuck

Item NO: DAS-20SS

Type: pneumatic chuck

Material: steel

MAX clamping size: 20mm

repeatability accuracy: within 0.015MM

match collet: YB-20

Operation pressure: 3-15KG/cm2

gripping force: 1600kgf

packing size: 20*20*15cm

G.W: 3.2kgs

usage: welding machine, automatic equipment
