Taiwan precision JAP104 diaphragm type quick rotating chuck, touch pen thin piece pneumatic chuck

Short Description:

Taiwan precision JAP104 diaphragm type quick rotating chuck, touch pen thin piece pneumatic chuck Introduction JAP100 cylinder-integrated pneumatic diaphragm chuck provides you with a high accuracy yet hassle-free diaphragm chucking solution, saving you from the trouble of installing rotary cylinders, tailor making any draw tube or air feeders. And with its real front-mounted design, the installations is revolutionarily easier than ever. 1.Repeatability is within 0.005mm 2.Air cylinder is in...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece
  • Supply Ability: 1200 Piece/Pieces per Month
  • Product Name: small mini chuck
  • Type: pneumatic Diaphragm chuck
  • Material: steel
  • Item NO: JAP-104
  • R.P.M: 5000RPM
  • Operation pressure: 0.5-7kgs
  • jaw opening: 0.2mm(0.008")
  • through hole: 10mm(0.39")
  • max capacity: 42mm(1.65")
  • N.W: 2.8kgs(6.2lbs)
  • mounting bolts: 4H-6M(front)
  • G.W: 4.5kgs
  • usage: graving and milling machine
  • Product Detail

    Product Tags

    Taiwan precision JAP104 diaphragm type quick rotating chuck, touch pen thin piece pneumatic chuck

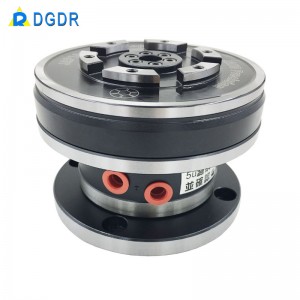

    JAP104-1

    Introduction

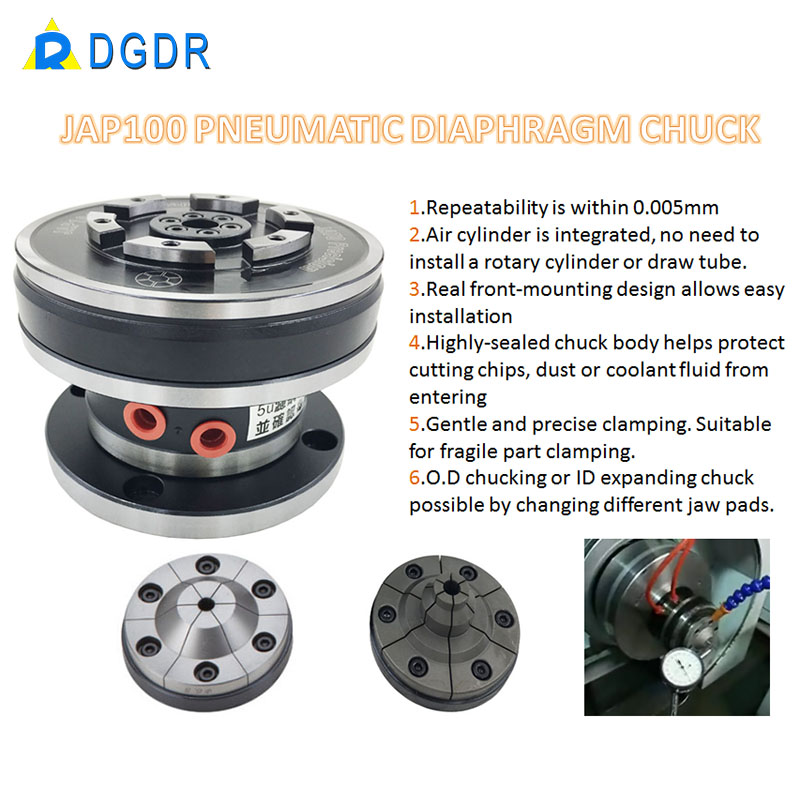

    JAP100 cylinder-integrated pneumatic diaphragm chuck provides you with a high accuracy yet hassle-free diaphragm chucking solution, saving you from the trouble of installing rotary cylinders, tailor making any draw tube or air feeders. And with its real front-mounted design, the installations is revolutionarily easier than ever.

    1.Repeatability is within 0.005mm

    2.Air cylinder is integrated, no need to install a rotary cylinder or draw tube.

    3.Real front-mounting design allows easy installation

    4.Highly-sealed chuck body helps protect cutting chips, dust or coolant fluid from entering

    5.Gentle and precise clamping. Suitable for fragile part clamping.

    6.O.D chucking or ID expanding chuck possible by changing different jaw pads.

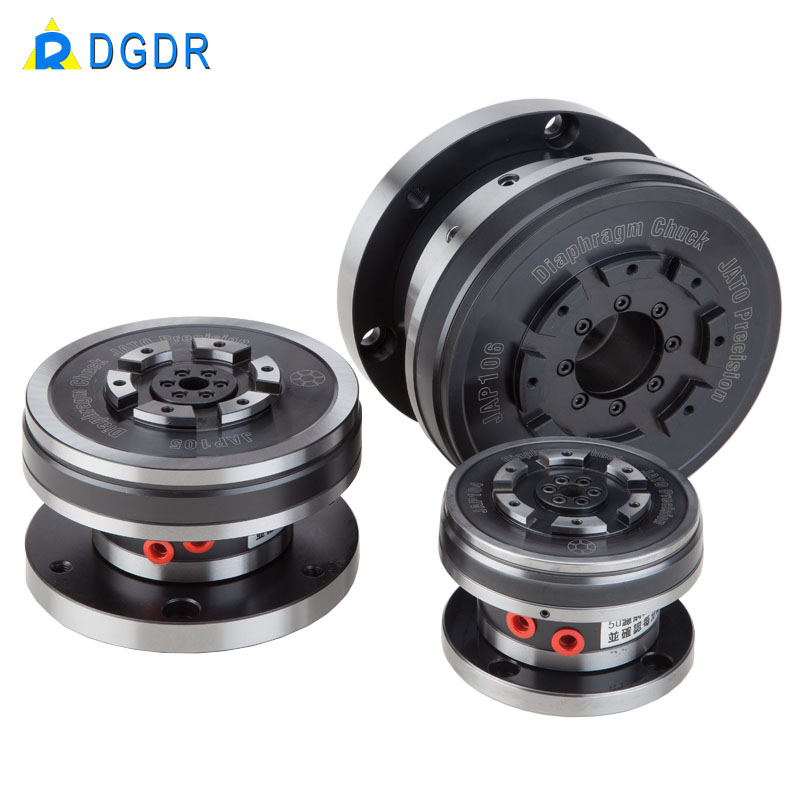

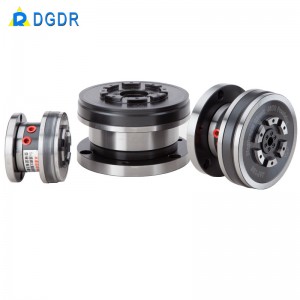

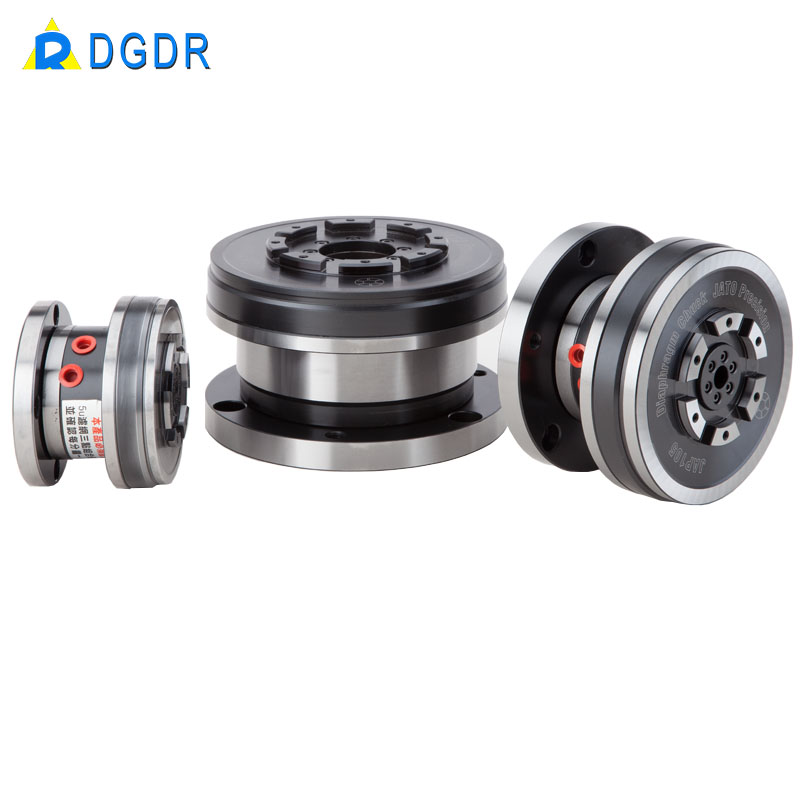

    JAP104-6 JAP104-7

    How to choose the suitable chuck ?

    Considering 3 questions:

    1.Size of work-piece (Including ID&OD)

    2.Processing requirement

    3.For what kind machine?

    (CNC lathe, machine center, drilling machine, milling machine, welding equipment, pipe threading machine, grinding machine)

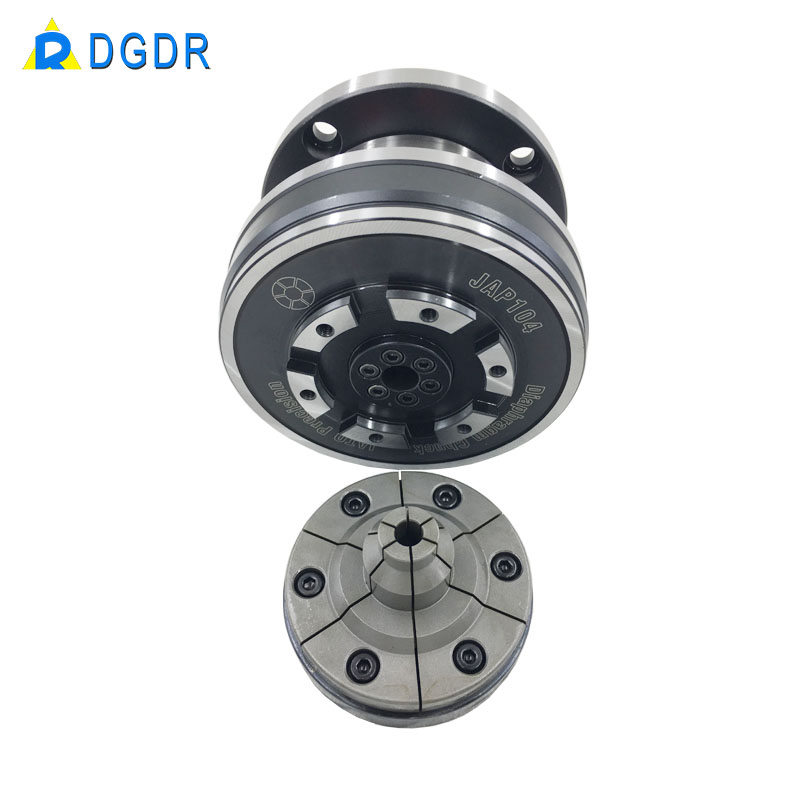

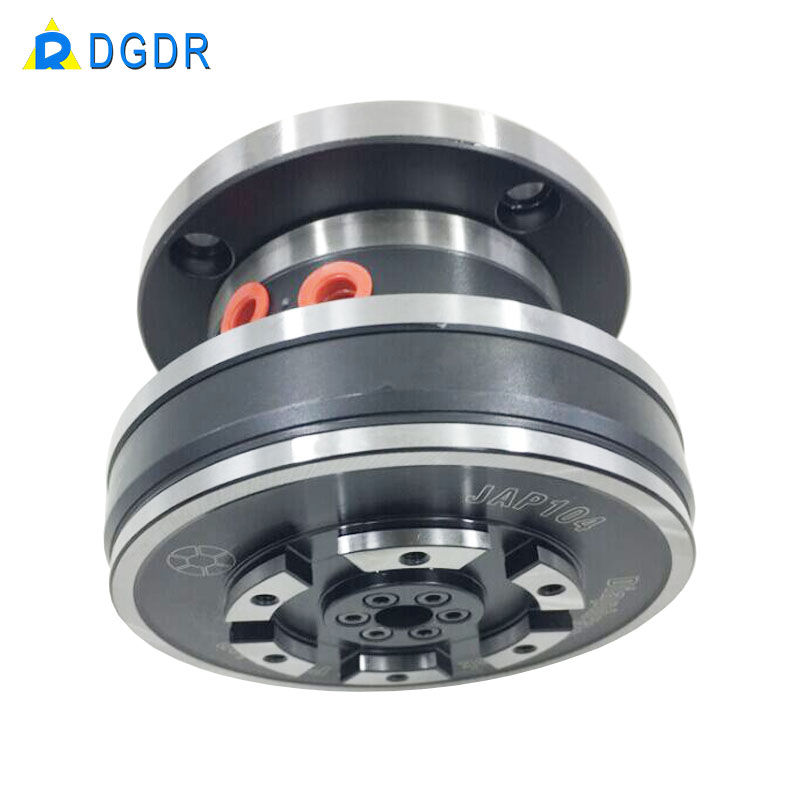

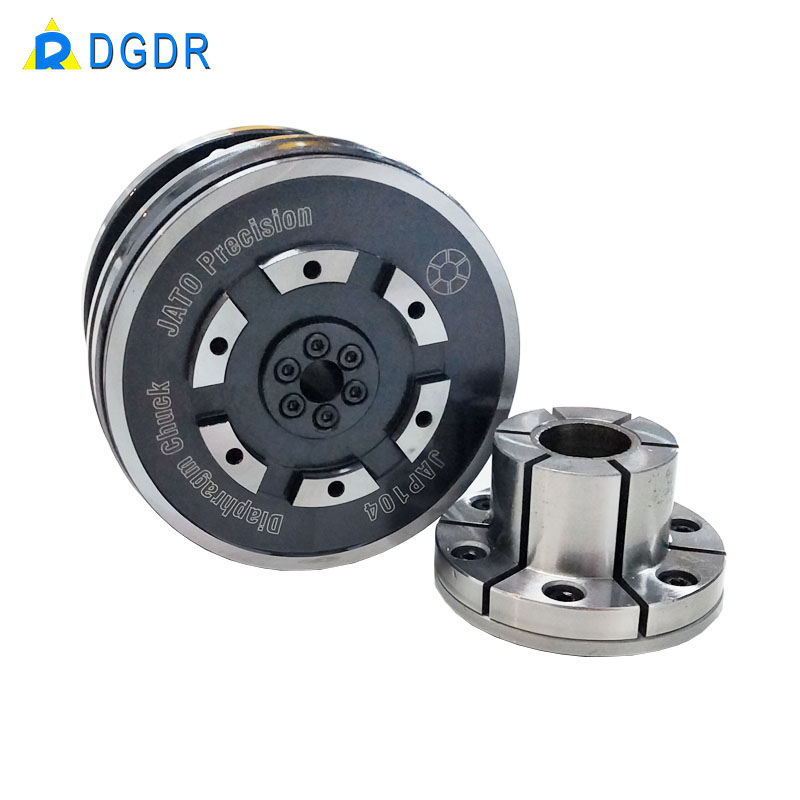

    JAP104-5 JAP104-4 JAP104-3 JAP104-2

    ABOUT OUR COMPANY





    Derui Precision Machinery Co. Ltd is specialized in manufacturing various of High Precision Chuck. Including two parts: Hydraulic chuck and Pneumatic Chuck. Our main products include Cylinder-Integrated Collect Chuck/Rotary Power Chuck/Expanding Mandrel/Spindle Collect Chuck/Air Diaphragm Chuck/Precision Collect Chuck/3-Jaw Diaphragm Power Chuck/Stationary Chuck etc.

    Our production capacity is now up to 1200 pieces per month. Our goal and core value is “saving refit cost, improving production efficiency”. Providing consistently high quality products to our customer to meet or exceed the expectations of their “end-user” customers. To accomplish this, we continuously invest in our manufacturing facilities and personnel, keeping both at the leading edge of China-based manufacturing.

    At present, our company has established cooperative relations with many famous enterprises in China, customized various non-standard pneumatic chucks and hydraulic chucks. With our accumulated experience and expertise, the suggestion we offer to our customer will in a professional manner.

    More than professional, Derui will provide you with the most appropriate chucks and services.
