Taiwan king JDS vertical diaphragm type pneumatic chuck fixed can not rotate the chuck – oil pressure chuck

Introduction

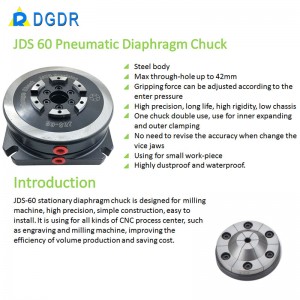

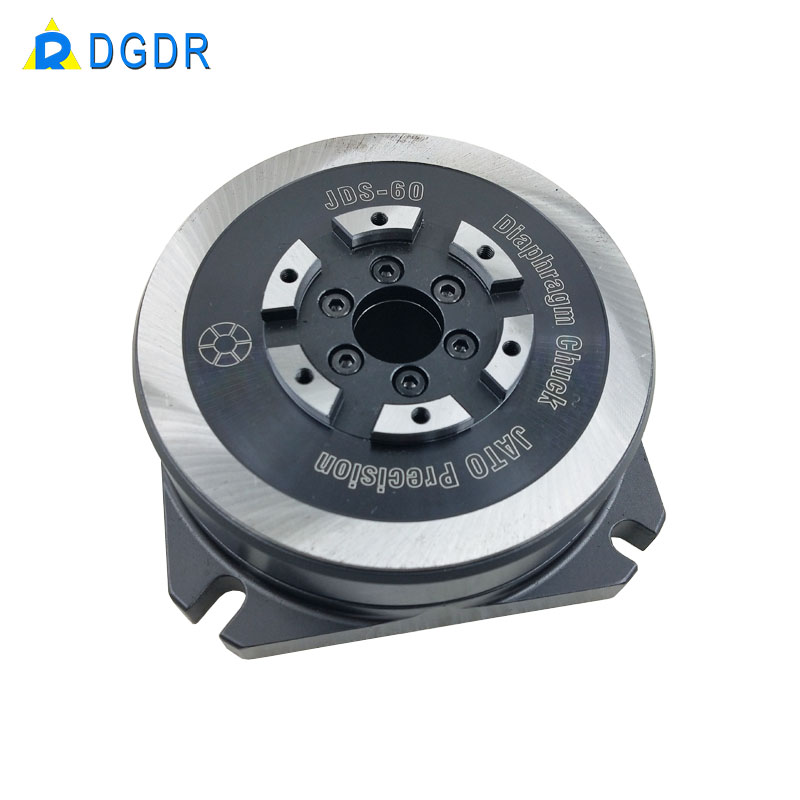

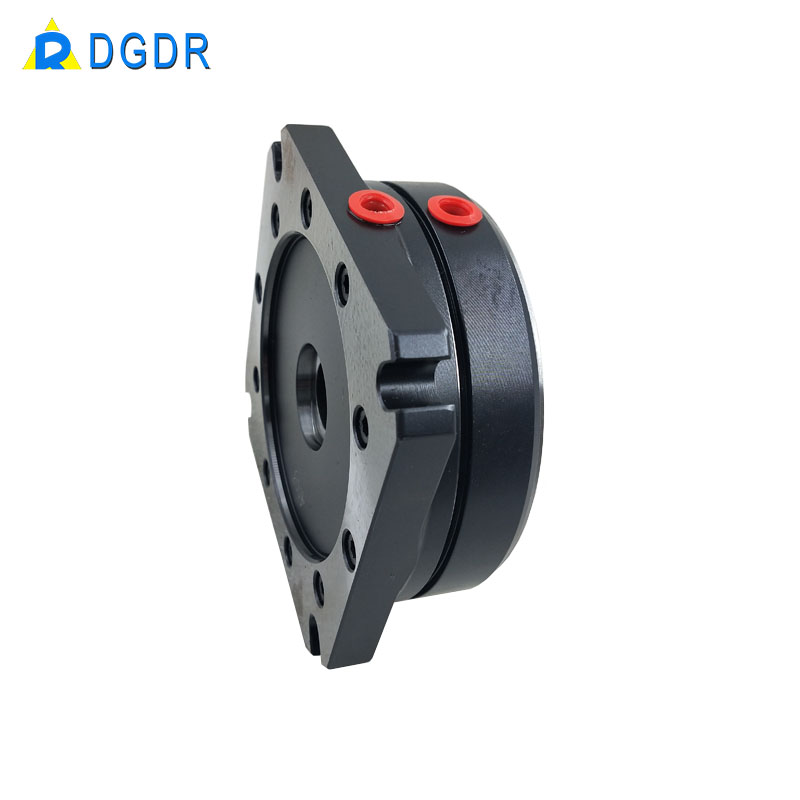

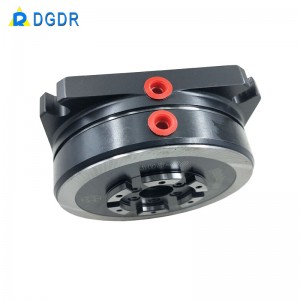

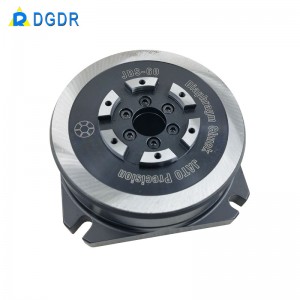

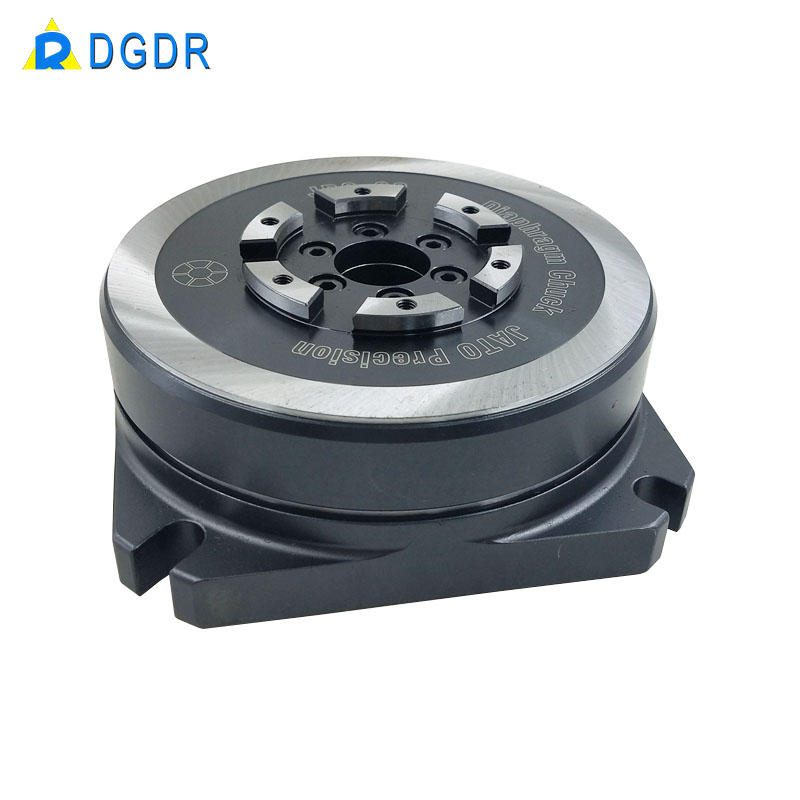

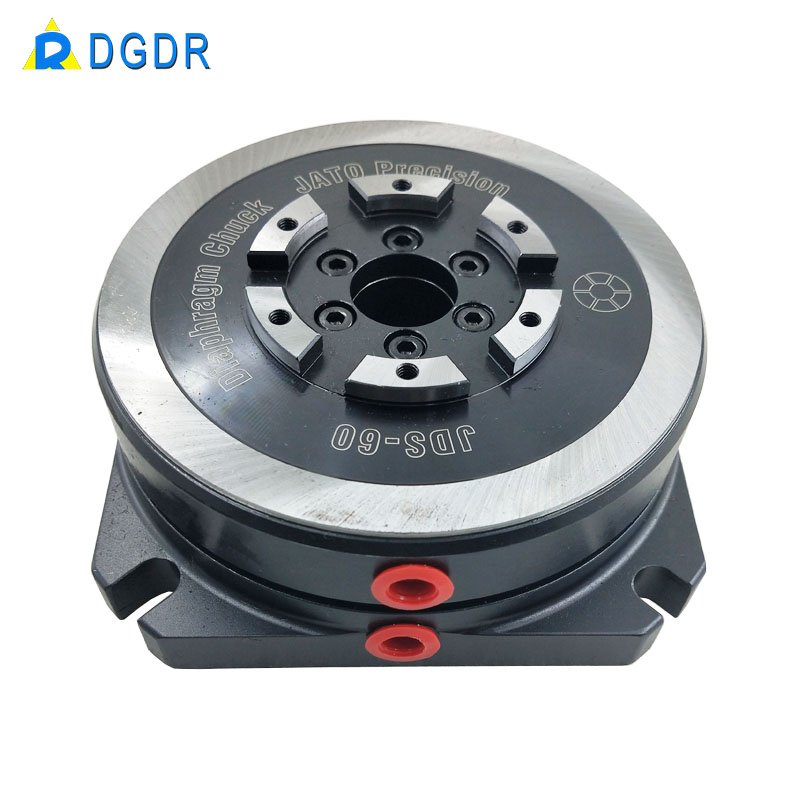

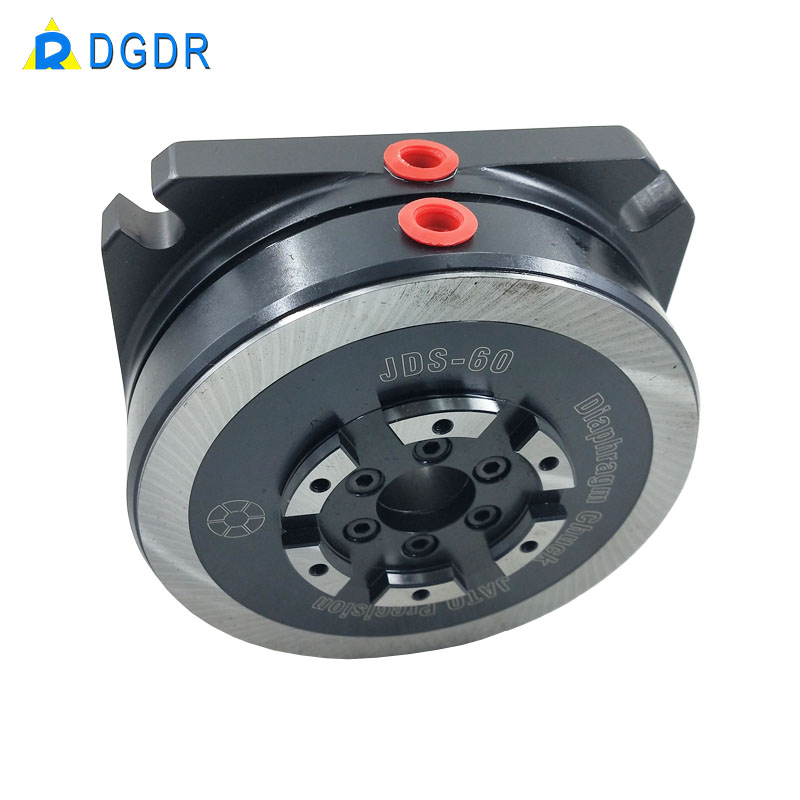

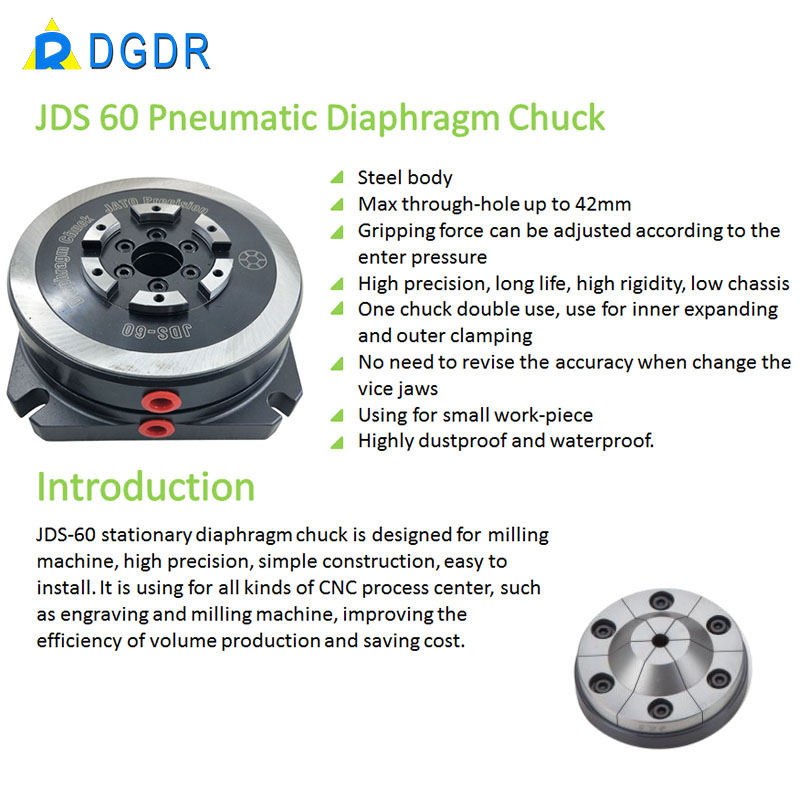

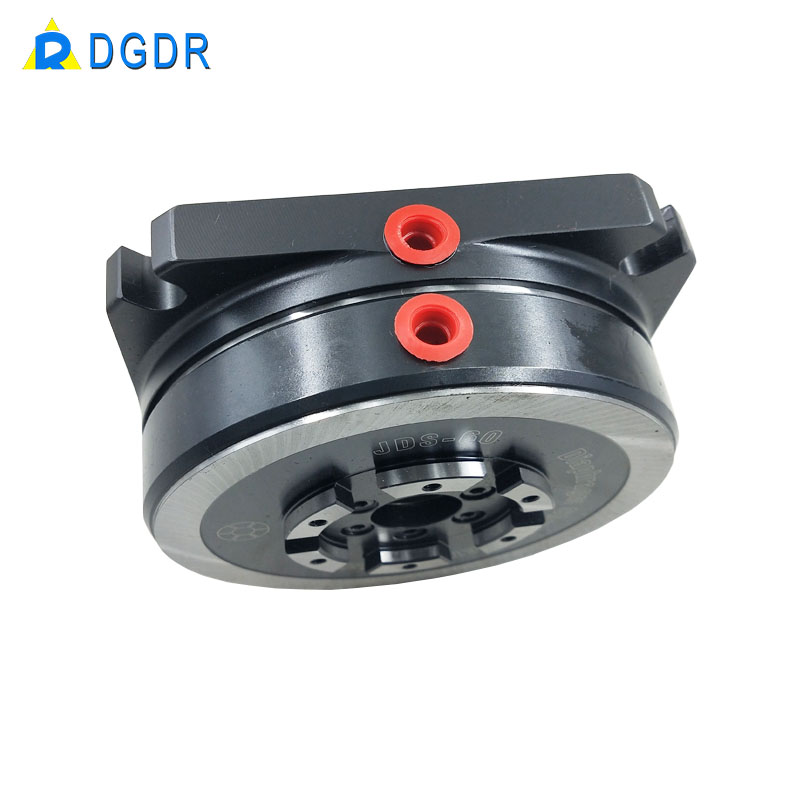

JDS-60 stationary diaphragm chuck is designed for milling machine, high precision, simple construction, easy to install. It is using for all kinds of CNC process center, such as engraving and milling machine, improving the efficiency of volume production and saving cost.

1.Steel body

2.Max through-hole up to 42mm

3.Gripping force can be adjusted according to the enter pressure

4.High precision, long life, high rigidity, low chassis

5.One chuck double use, use for inner expanding and outer clamping

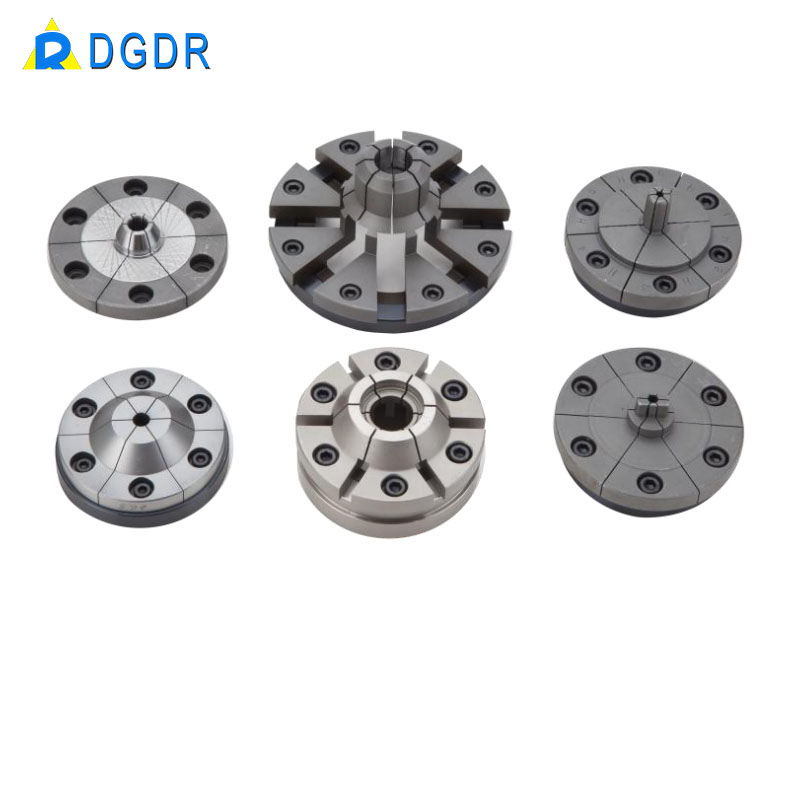

6.No need to revise the accuracy when change the vice jaws

7.Using for small work-piece

8.Highly dustproof and waterproof.
