JAC-15 laser equipment chuck, DGDR pneumatic chuck for CNC lathe

Short Description:

JAC-15 laser equipment chuck, DGDR pneumatic chuck for CNC lathe JAC series Introduction JAC SERIES cylinder-integrated Air Collet  Chuck provides you with irreplaceable convenience to set up your power collet chuck system. JAC Collet Chuck integrates itself a high speed rotary cylinder, saving you from installing an extra cylinder, a drawtube or an air feeder. With its real front-mounting design, the installation for a  power collet chuck system is revolutionarily easier than ever. 1.JAC s...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece
  • Supply Ability: 1200 Piece/Pieces per Month
  • Product Name: mini cylinder-intergrated collet air chuck
  • Type: pneumatic chuck
  • Material: steel
  • repeatability accuracy: within 0.03MM
  • match collet: YB-15
  • RPM: 4000rpm
  • Operation pressure: 3-8KG/cm2
  • usage: CNC milling machine
  • packing size: 22*22*18cm
  • G.W: 4.5kgs
  • Product Detail

    Product Tags

    JAC-15 laser equipment chuck, DGDR pneumatic chuck for CNC lathe

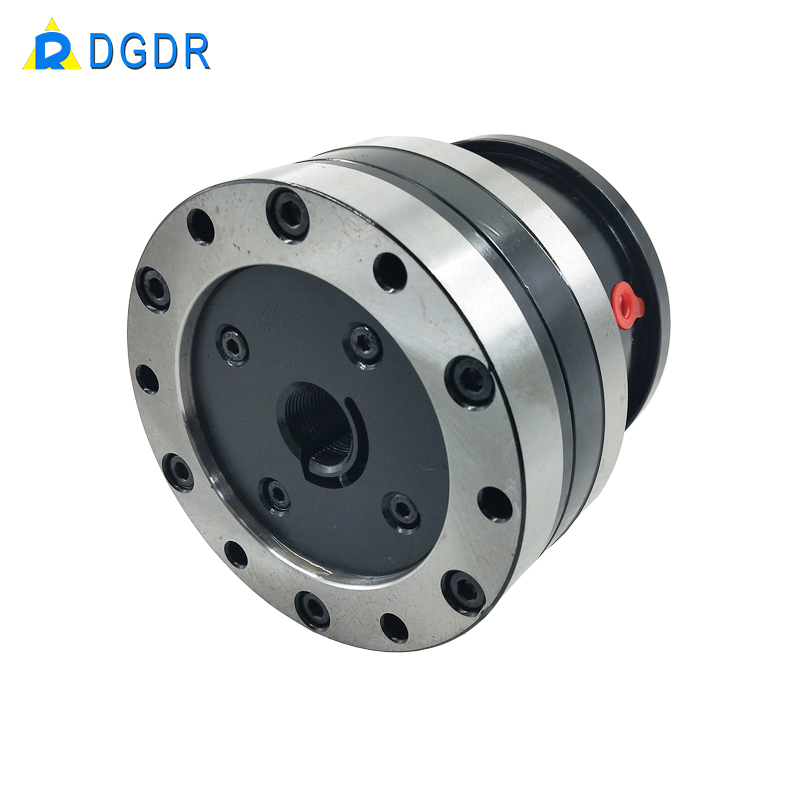

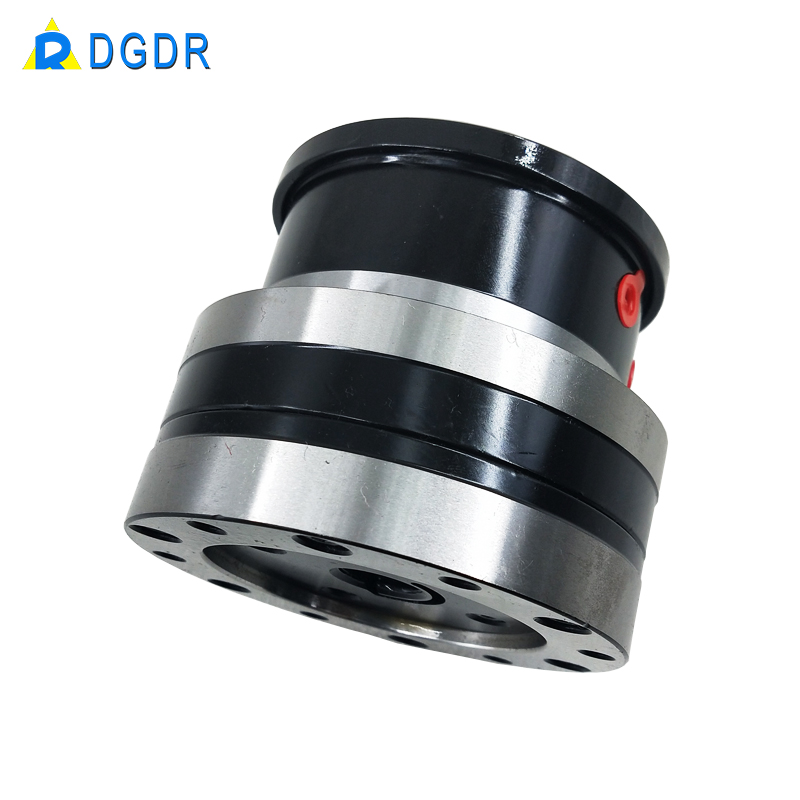

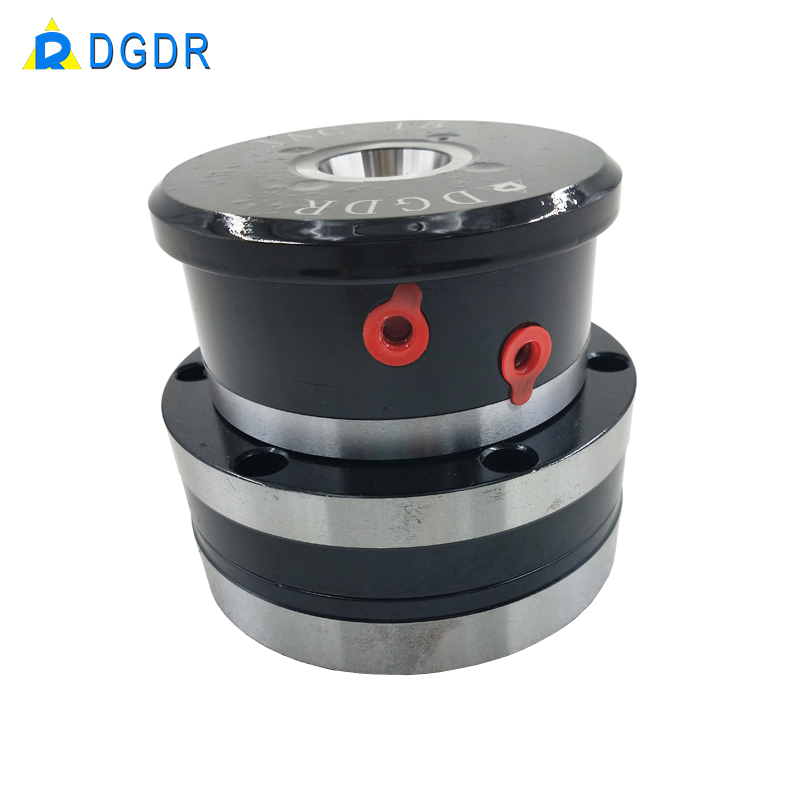

    JAC-15 (1)JAC-15 (2)

    JAC-15-8

    JAC series Introduction

    JAC SERIES cylinder-integrated Air Collet  Chuck provides you with irreplaceable convenience to set up your power collet chuck system. JAC Collet Chuck integrates itself a high speed rotary cylinder, saving you from installing an extra cylinder, a drawtube or an air feeder. With its real front-mounting design, the installation for a  power collet chuck system is revolutionarily easier than ever.

    1.JAC series is a small rotary air chuck, with small size , saving space.

    2.JAC Precision collet chuck with inner rotary air cylinder.

    3. No need to install an extra cylinder, draw tube or an air feeder, saving facility costing.

    4.Max outer diameter is 102MM, the clamping of though-hole is 15MM.

    5.The clamping accuracy of JAC is within 0.01MM, and the repeatability accuracy is 0.03MM.

    6.Max R.P.M is 3500RPM

    7.Using YB-15 Chuck models, forcing clamping to loosen, feeding material smoothly.

    8.No displacement when clamp the work-piece.

    9.Max operation pressure is 3-8KG

    10.With semi-tight design, highly dustproof and waterproof.

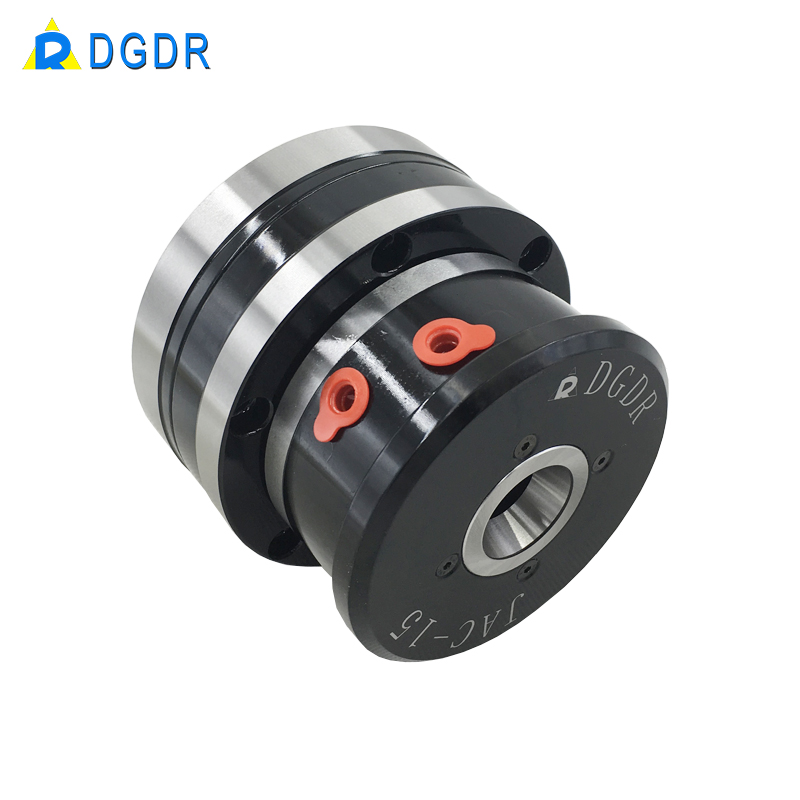

    JAC-15-7

    How to choose the suitable chuck ?

    Considering 3 questions:

    1.Size of work-piece (Including ID&OD)

    2.Processing requirement

    3.For what kind machine?

    (CNC lathe, machine center, drilling machine, milling machine, welding equipment, pipe threading machine, grinding machine)

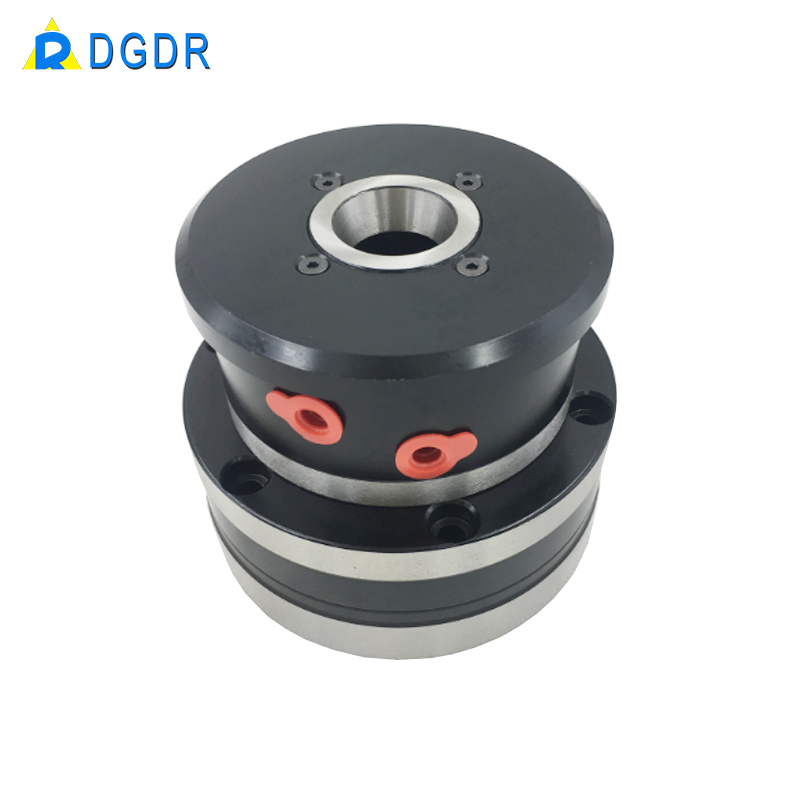

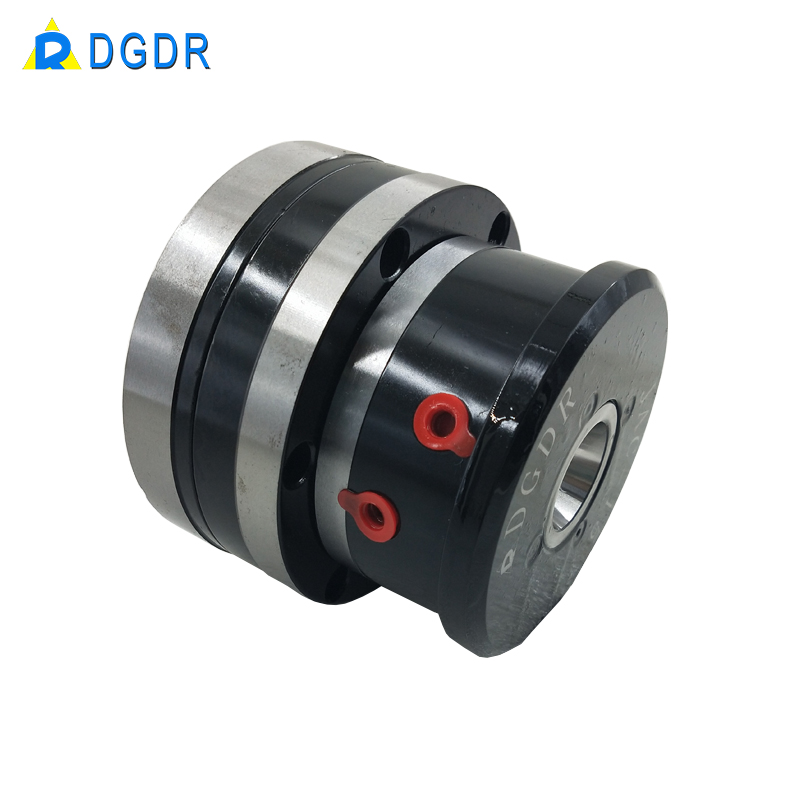

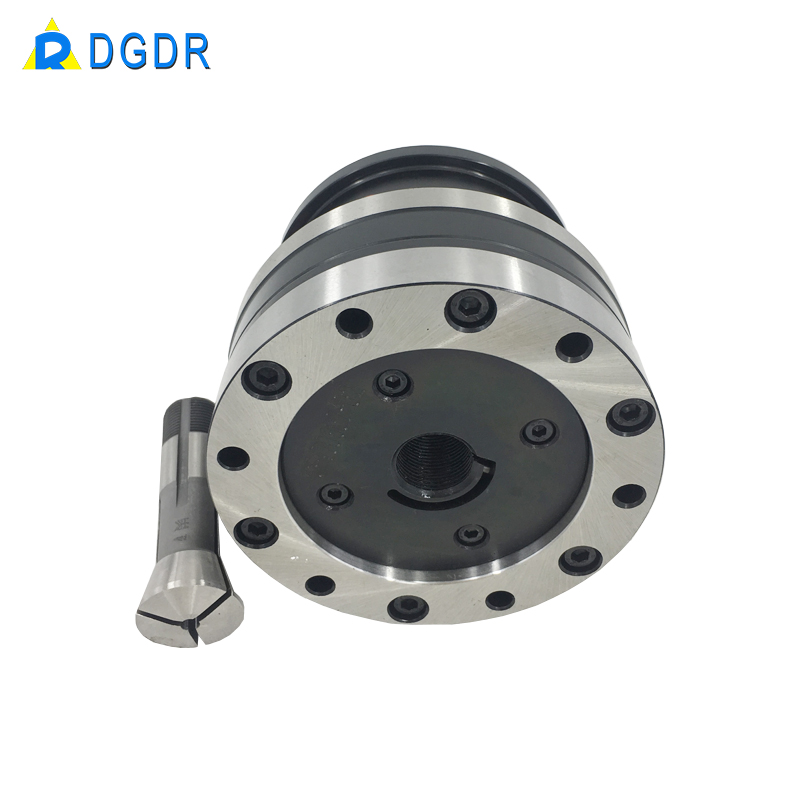

    JAC-15-6 JAC-15-5 JAC-15-4 JAC-15-3 JAC-15-2 JAC-15-1

    Derui Precision Machinery Co. Ltd is specialized in manufacturing various of High Precision Chuck. Including two parts: Hydraulic chuck and Pneumatic Chuck. Our main products include Cylinder-Integrated Collect Chuck/Rotary Power Chuck/Expanding Mandrel/Spindle Collect Chuck/Air Diaphragm Chuck/Precision Collect Chuck/3-Jaw Diaphragm Power Chuck/Stationary Chuck etc.

    Our production capacity is now up to 1200 pieces per month. Our goal and core value is “saving refit cost, improving production efficiency”. Providing consistently high quality products to our customer to meet or exceed the expectations of their “end-user” customers. To accomplish this, we continuously invest in our manufacturing facilities and personnel, keeping both at the leading edge of China-based manufacturing.

    At present, our company has established cooperative relations with many famous enterprises in China, customized various non-standard pneumatic chucks and hydraulic chucks. With our accumulated experience and expertise, the suggestion we offer to our customer will in a professional manner.

    More than professional, Derui will provide you with the most appropriate chucks and services.
