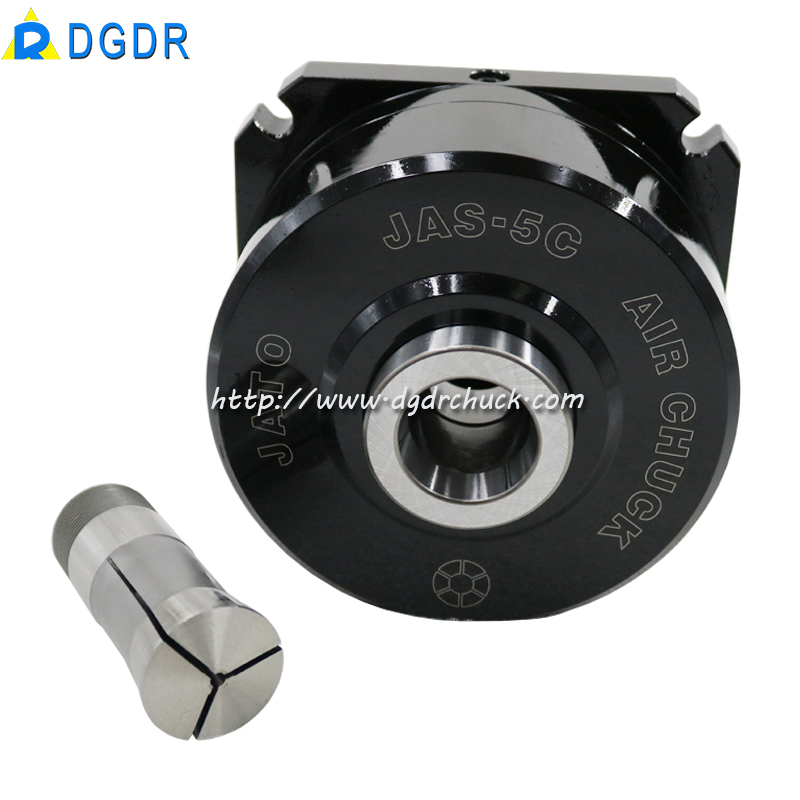

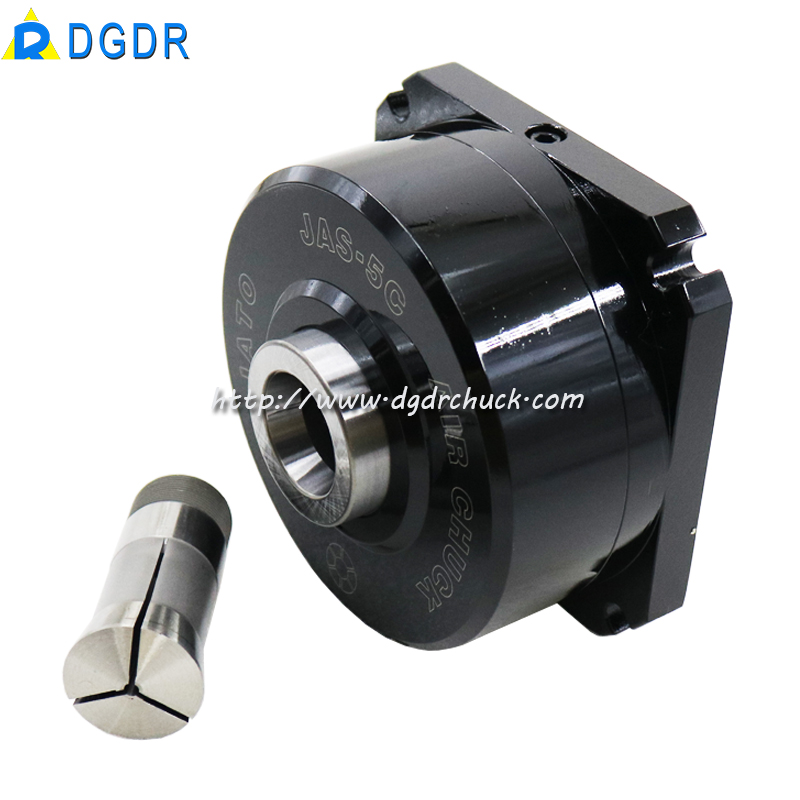

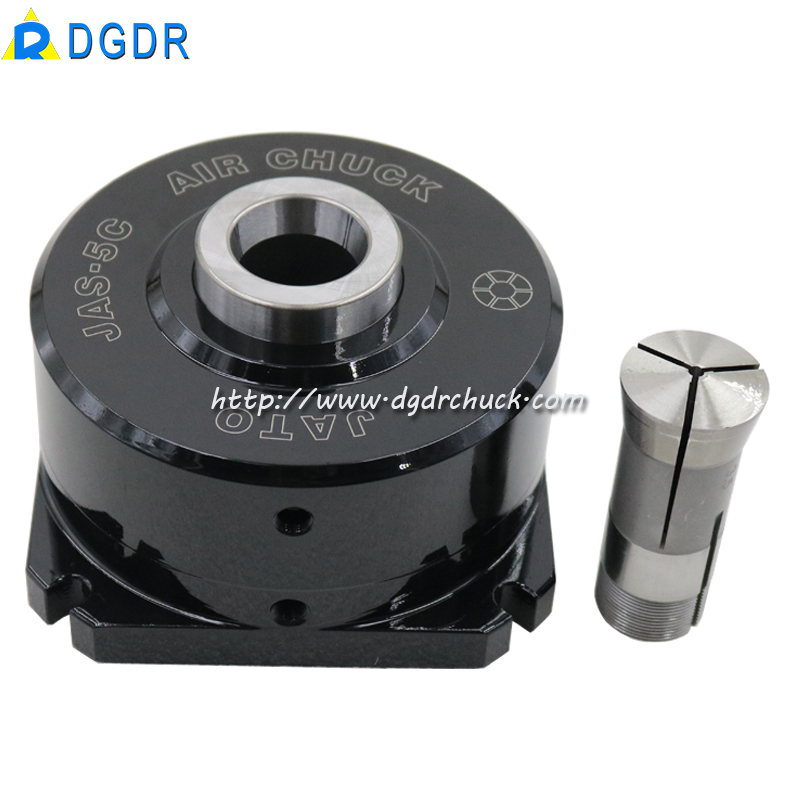

JAS-5C hot sales stationary 5C collet chuck for tapping machine

Short Description:

JAS-5C hot sales stationary 5C collet chuck for tapping machine pneumatic stationary chuck is a high precision chuck with small size and light weight, can put several chucks on same workbench,  to improve the working efficiency, decrease the maintenance cost and labour cost. With high stability, high precision, waterproof and dustproof, it is usually applying to CNC, such as tapping machine. 1.Cost effective stationary collet chuck 2.Dead length design: no axial movement. 3.High accuracy. Hi...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece
  • Supply Ability: 1200 Piece/Pieces per Month
  • Product Name: JAS-5C stationary chuck
  • Type: pneumatic chuck
  • Material: steel
  • Item NO: JAS-5C
  • repeatability accuracy: within 0.015MM
  • match collet: 5C
  • Operation pressure: 3-15KG/cm2
  • Gripping force: 3890kgf
  • packing size: 26*26*23cm
  • G.W: 9kgs
  • usage: tapping machine, Automation equipment
  • Product Detail

    Product Tags

    JAS-5C hot sales stationary 5C collet chuck for tapping machine
    https://www.aliexpress.com/item/32897677107.html

    pneumatic stationary chuck is a high precision chuck with small size and light weight, can put several chucks on same workbench,  to improve the working efficiency, decrease the maintenance cost and labour cost. With high stability, high precision, waterproof and dustproof, it is usually applying to CNC, such as tapping machine.

    1.Cost effective stationary collet chuck

    2.Dead length design: no axial movement.

    3.High accuracy. High rigidity. Long product lift.

    4.High resistant to cutting chips, fluid or dust.

    5.Chuck force-opening design ensures no work-part jamming
