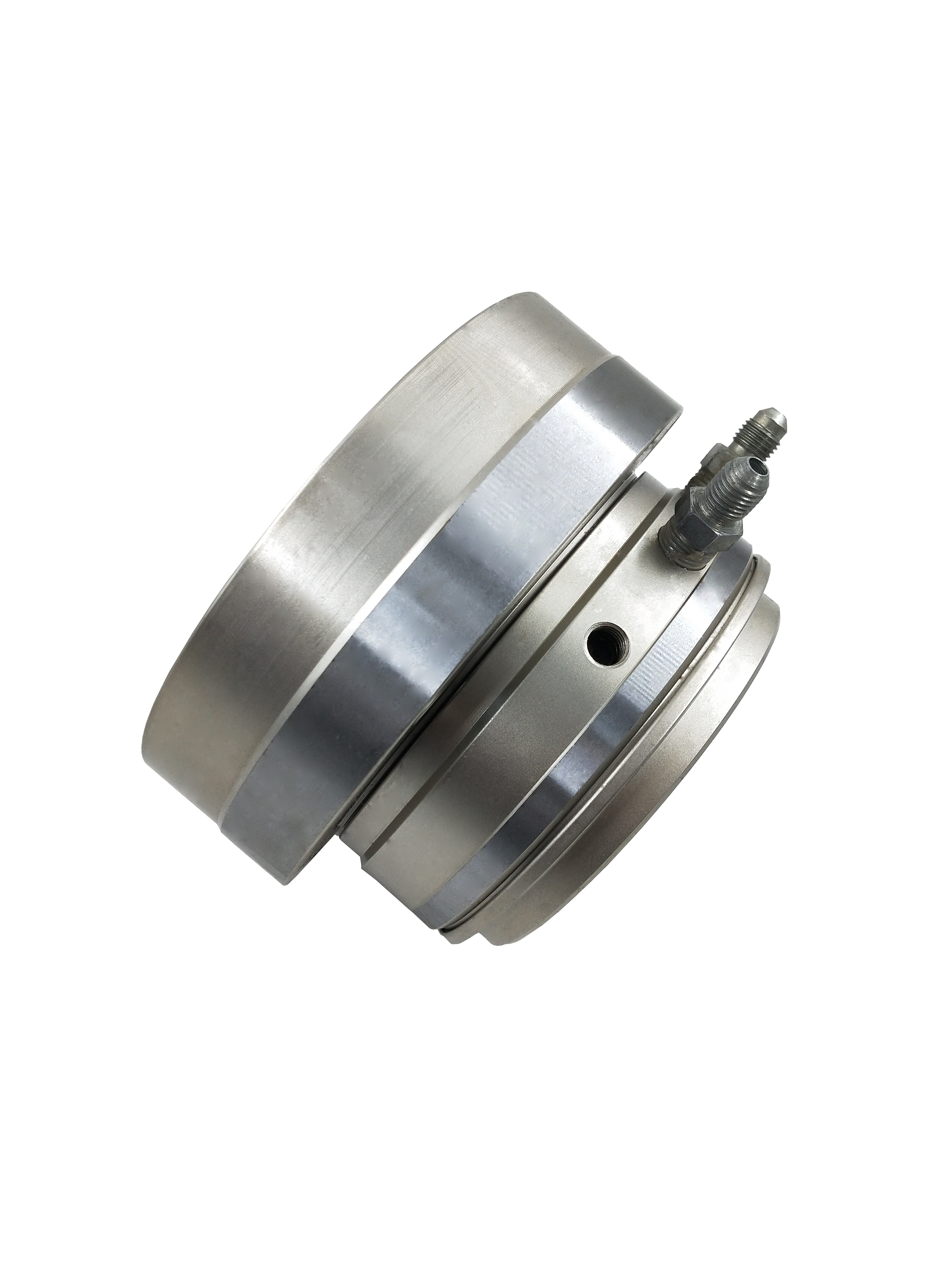

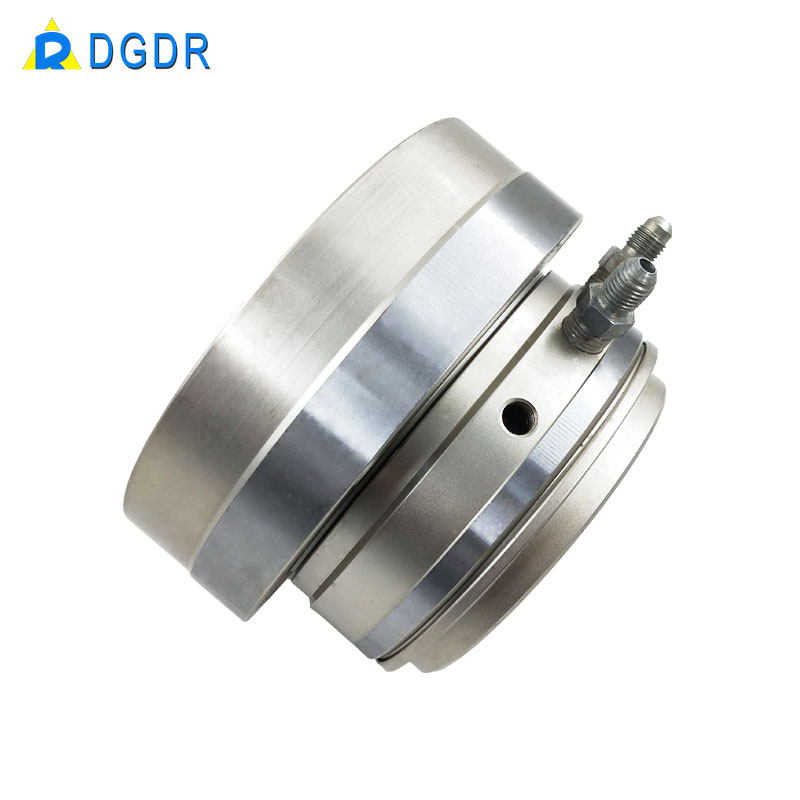

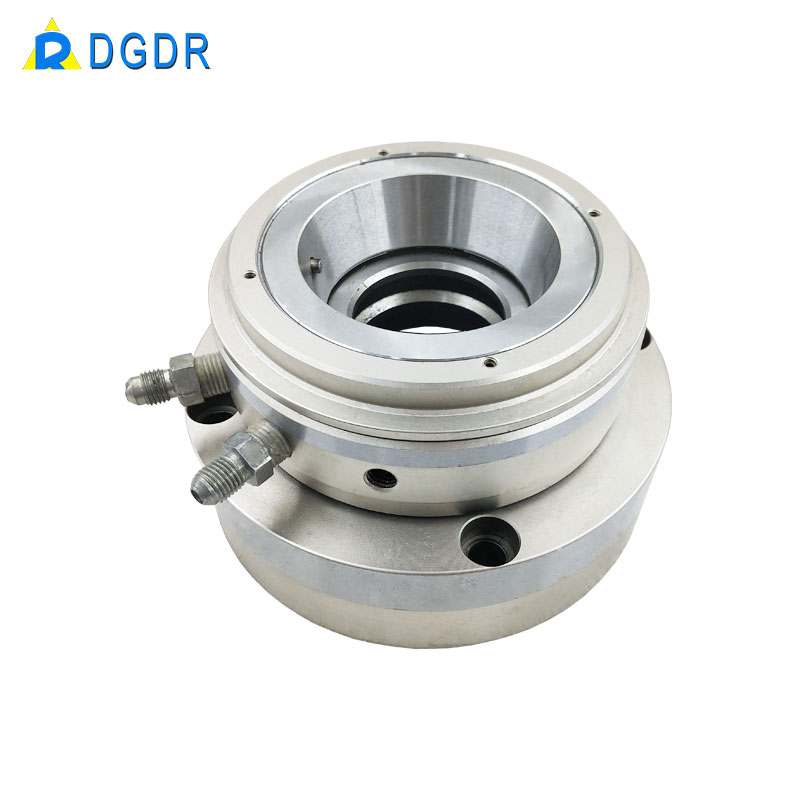

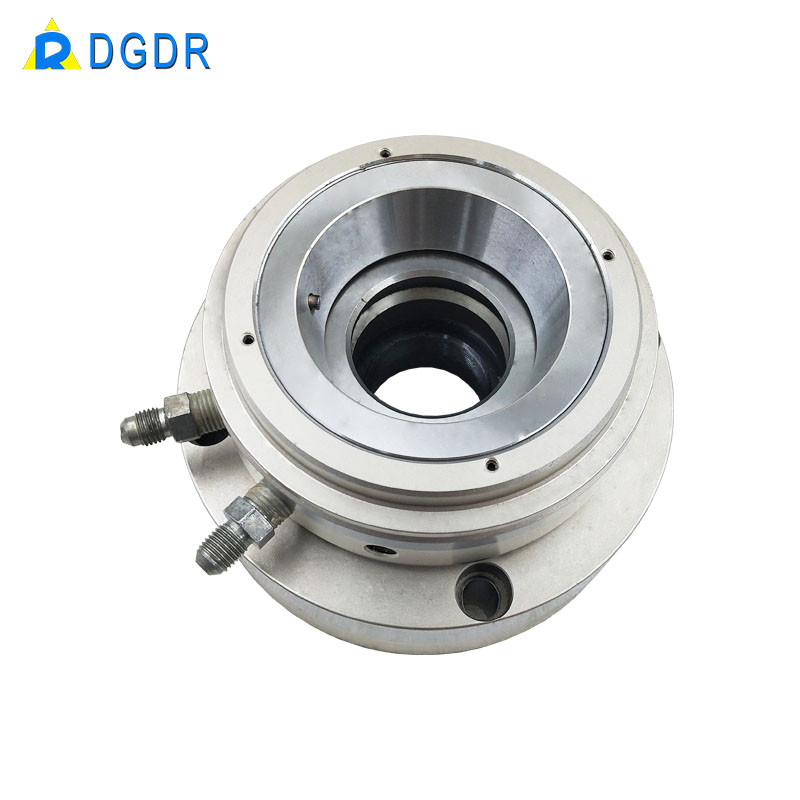

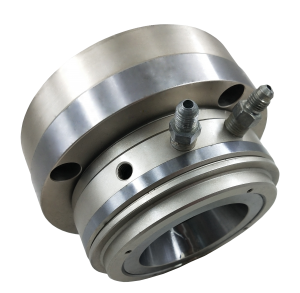

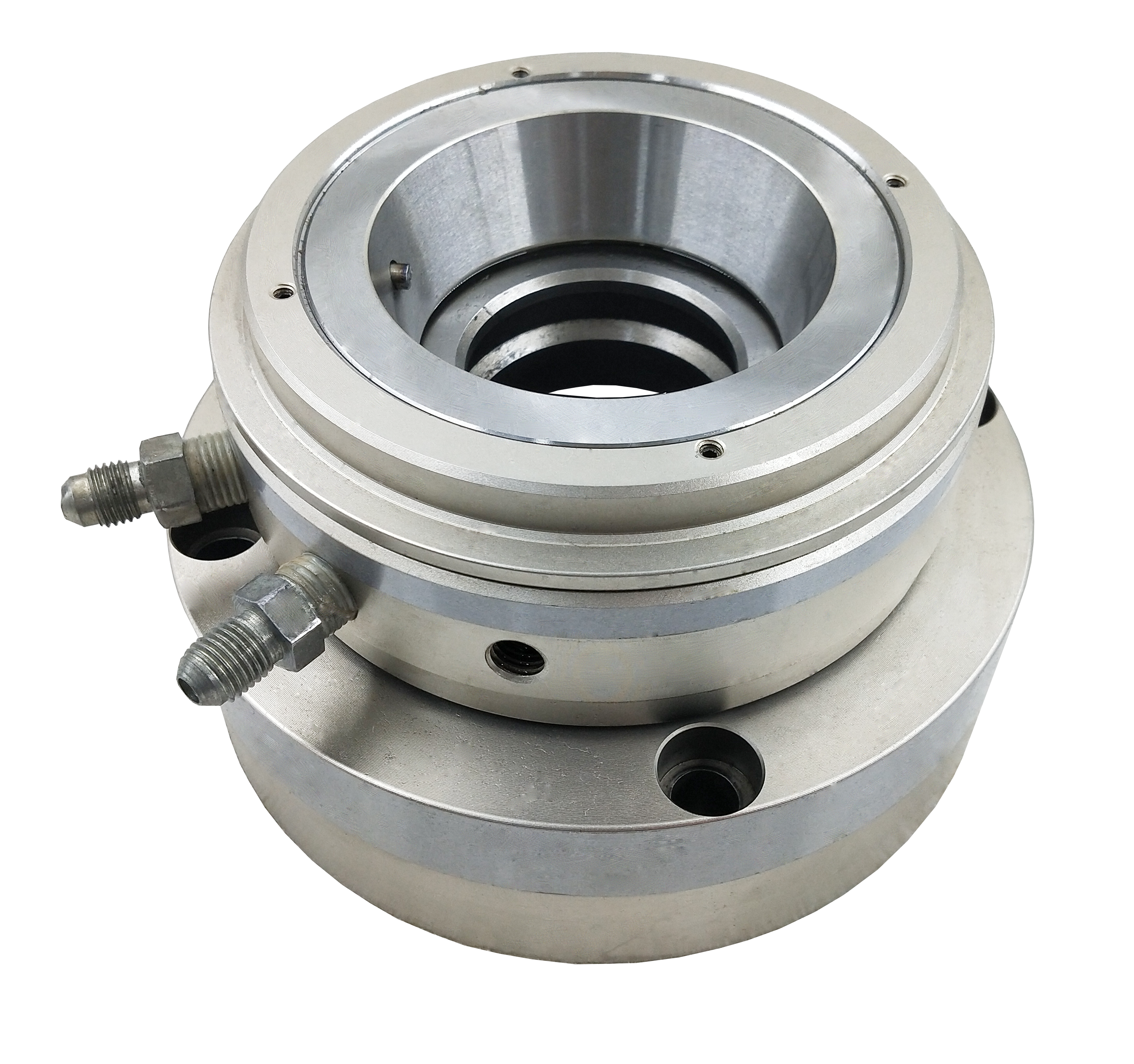

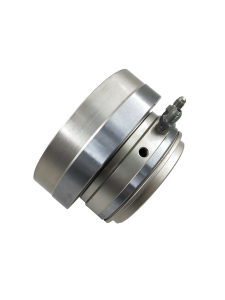

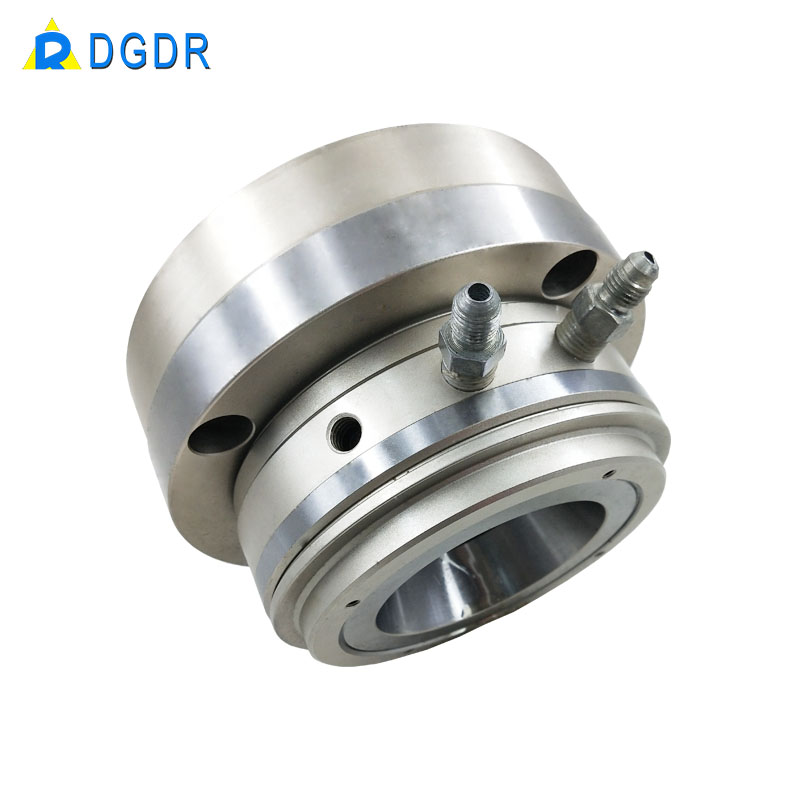

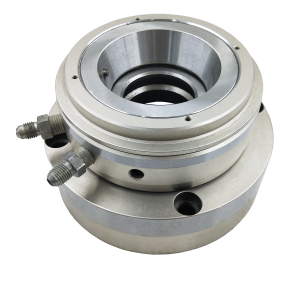

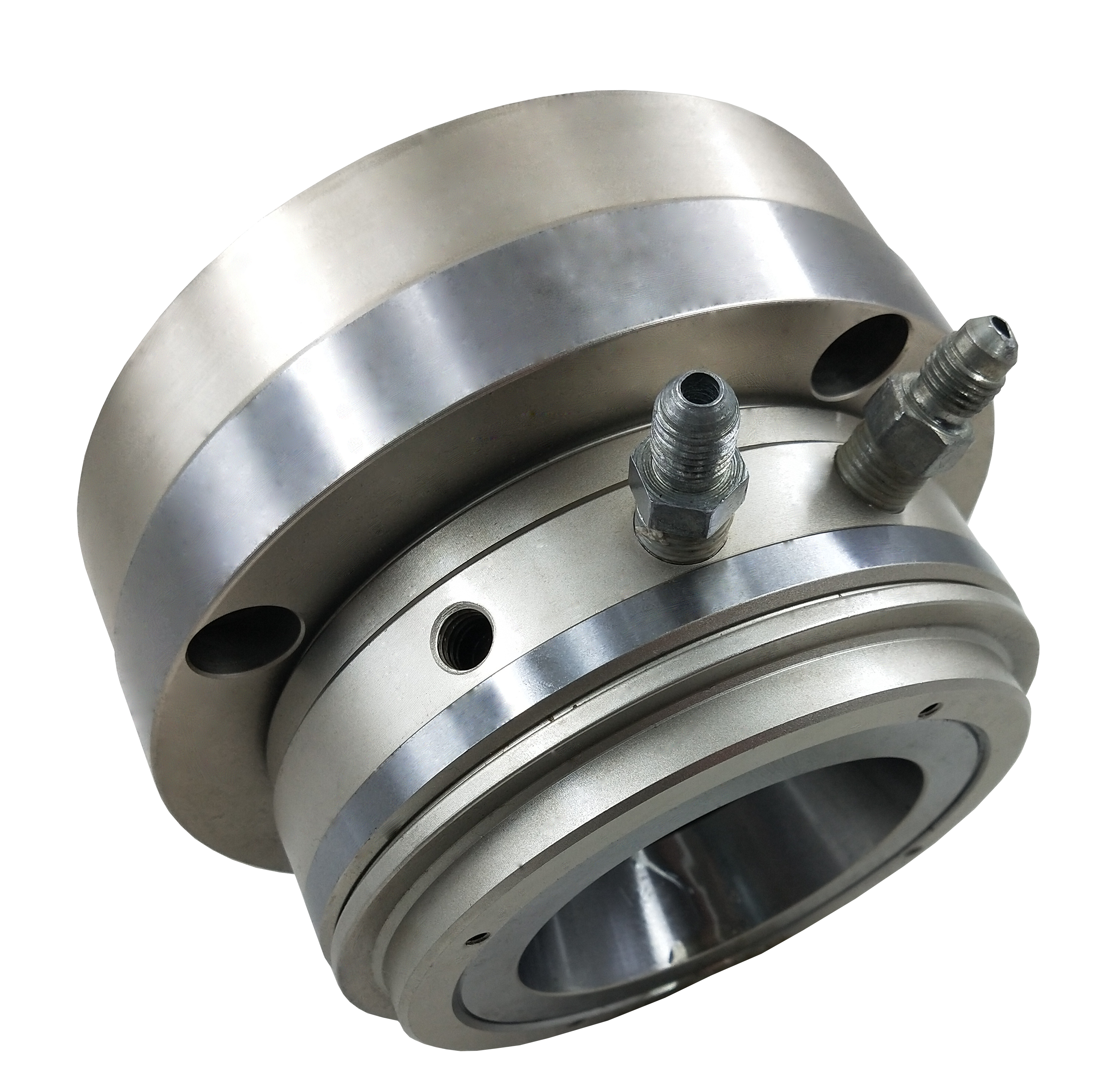

four axis or five axis automatic chuck, hydraulic rotary cylinder, hainbuch style clamping heads CHP206-SS42

CHP206-SS42 is designed for Automation equipment, specially using for CNC machine center, such as four axis and five axis lathe. CHO206-SS42 no need to install a rotating cylinder and stay tube at the back of rotating disk. Built-in a rotary hydraulic cylinder. It is installed in front of the rotary disk. The collet can be changed with 30 seconds, it is improving the working efficiency.

1.Adopts hainbuch style clamping heads.

2.Built-in rotary hydraulic  cylinder.

3.Precision pull-back collet chuck, 0.01mm repeatability accuracy

4.Special for rotary  tables or Indexing Tables

5.Real front-mounting design allows easy installation.

6.Hydraulic actuated, large gripping force.

About DERUI

Derui Precision Machinery Co. Ltd is specialized in manufacturing various of High Precision Chuck. Including two parts: Hydraulic chuck and Pneumatic Chuck. Our main products include Cylinder-Integrated Collect Chuck/Rotary Power Chuck/Expanding Mandrel/Spindle Collect Chuck/Air Diaphragm Chuck/Precision Collect Chuck/3-Jaw Diaphragm Power Chuck/Stationary Chuck etc.

Our production capacity is now up to 1200 pieces per month. Our goal and core value is “saving refit cost, improving production efficiency”. Providing consistently high quality products to our customer to meet or exceed the expectations of their “end-user” customers. To accomplish this, we continuously invest in our manufacturing facilities and personnel, keeping both at the leading edge of China-based manufacturing.

At present, our company has established cooperative relations with many famous enterprises in China, customized various non-standard pneumatic chucks and hydraulic chucks. With our accumulated experience and expertise, the suggestion we offer to our customer will in a professional manner.

More than professional, Derui will provide you with the most appropriate chucks and services.
