Customized expanding mandrel chuck for CNC equipment, pneumatic hydraulic clamps,internal expansion chuck

Short Description:

Customized expanding mandrel chuck for CNC equipment, pneumatic hydraulic clamps,internal expansion chuck


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece
  • Supply Ability: 1200 Piece/Pieces per Month
  • Product Name: high precision Expanding mandrel chuck
  • Item NO: DTG-4C1
  • Material: steel
  • Expanding range: 41-63.5mm
  • repeatability accuracy: within 0.015MM
  • usage: CNC lathe, milling machine
  • chuck G.W: 3kgs
  • seat G.W: 8kgs
  • packing size: 20*20*20cm
  • Product Detail

    Product Tags

    Customized expanding mandrel chuck for CNC equipment, pneumatic hydraulic clamps,internal expansion chuck

    DTG-4C1-9



    How to choose the suitable chuck ?

    Considering 3 questions:

    1.Size of work-piece (Including ID&OD)

    2.Processing requirement

    3.For what kind machine?

    (CNC lathe, machine center, drilling machine, milling machine, welding equipment, pipe threading machine, grinding machine)

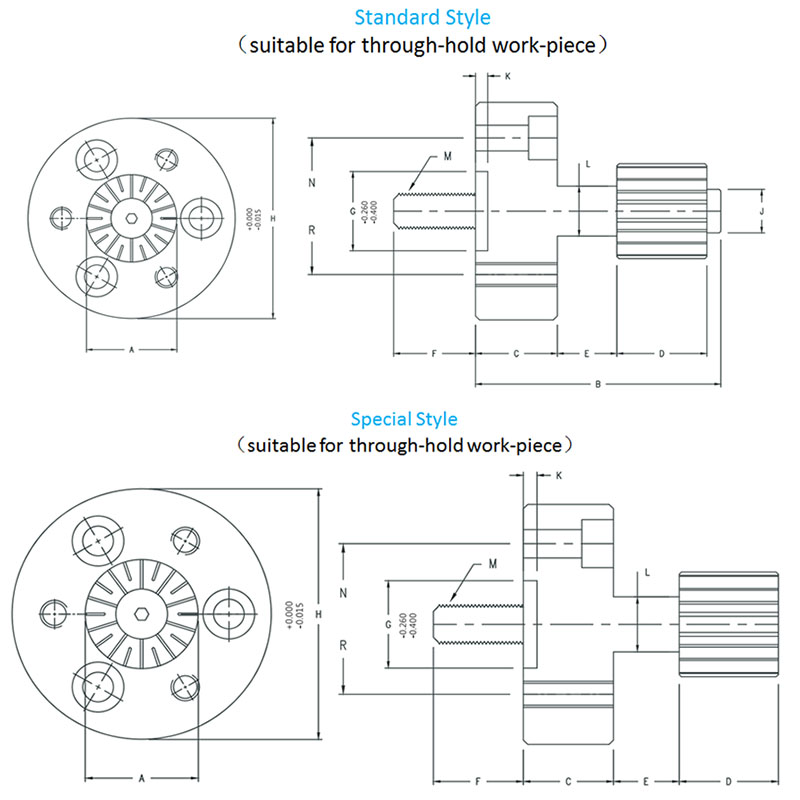

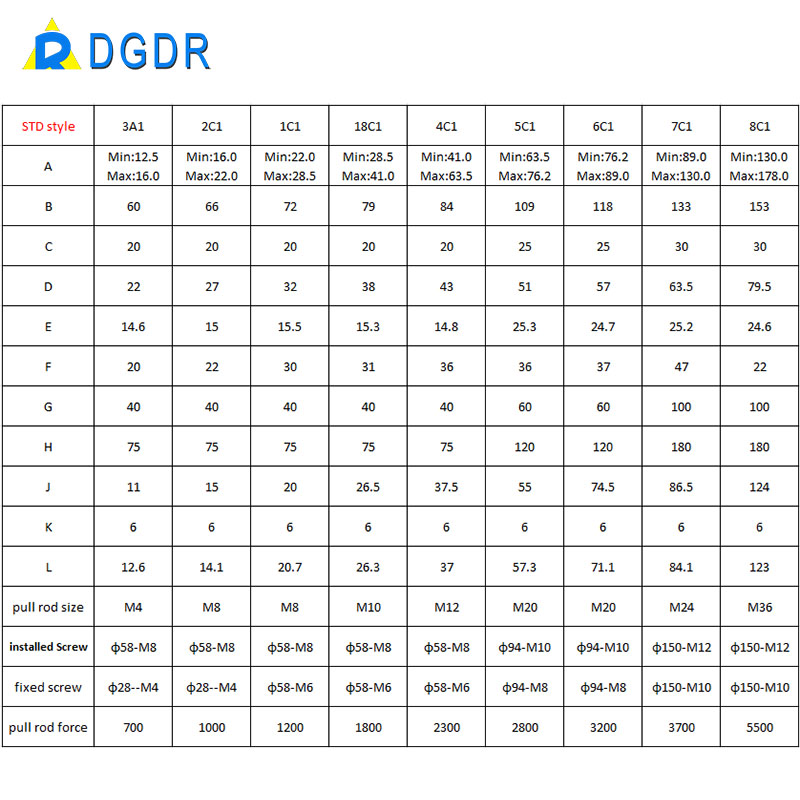

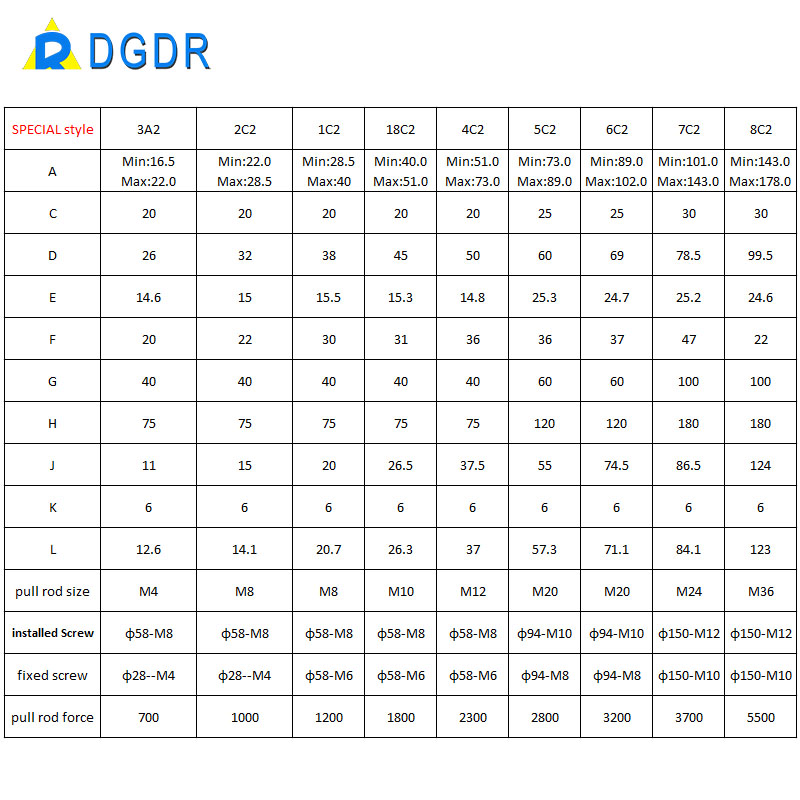

    DTG-4C1-17 DTG-4C1-18 DTG-4C1-19

    Introduction

    DTG expanding mandrel usually use for CNC lathe, grinding machine,  milling machine, or same machine with special usage. DTG series can provide a large, balance and stable clamping force with double-angle design. Standard option is suitable for through-hold work-piece. Special option is blind-hole work-piece.

    1.Double-angle principle allows for fast loading or uploading of components.

    2.Hgih precision expanding mandrel, the repeatability accuracy is within 0.015mm

    3.Large expansion range up to 0.8mm.

    4.Greater holding power by applying pressure evenly along the length of the sleeve.

    5.0.013mmT.I.R accuracy.

    6.OEM/ODM is highly  welcomed.

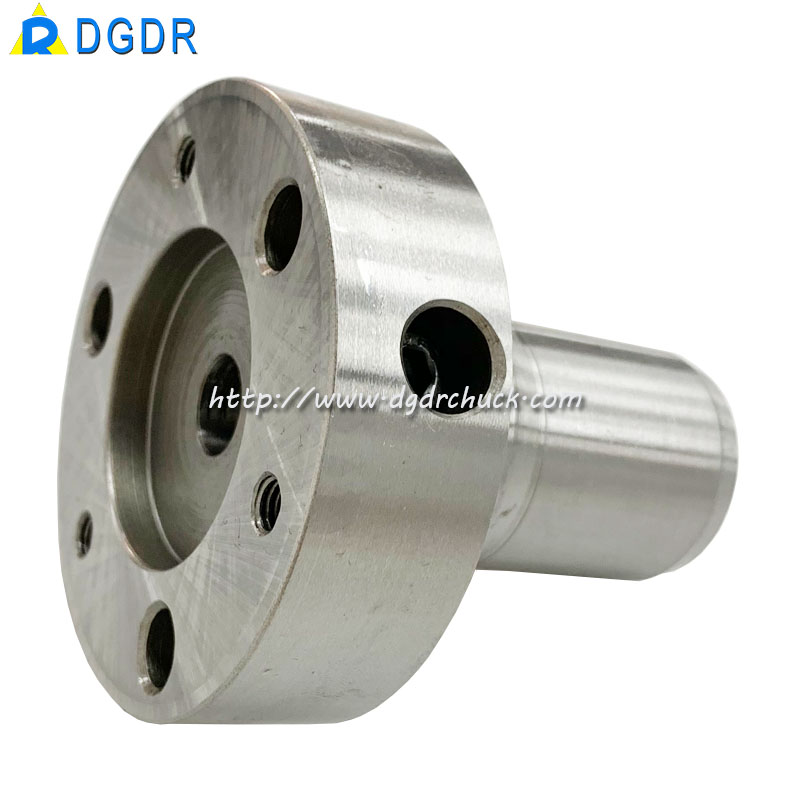

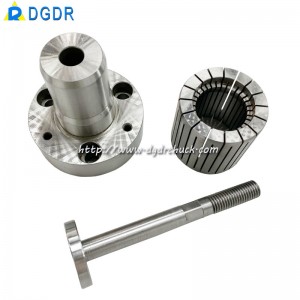

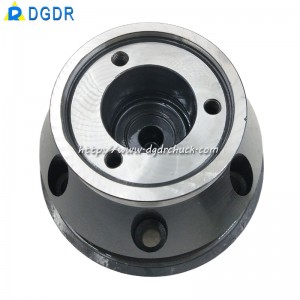

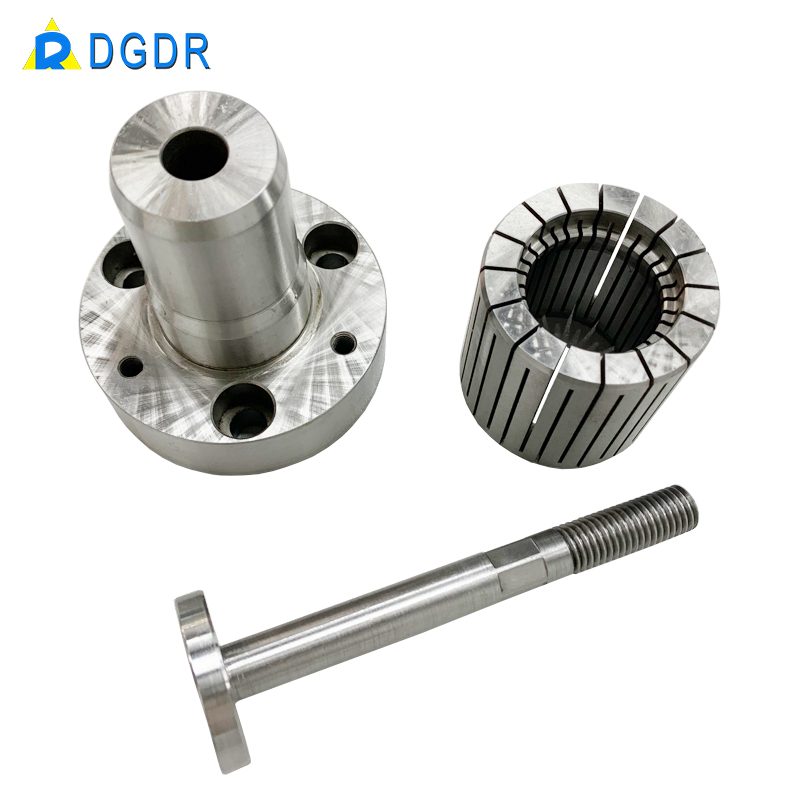

    内撑夹头-9 DTG-4C1-15 DTG-4C1-13 DTG-4C1-14 DTG-4C1-11 DTG-4C1-12 DTG-4C1-8 DTG-4C1-7 DTG-4C1-4 DTG-4C1-3 DTG-4C1-2 DTG-4C1-1

    Derui Precision Machinery Co. Ltd is specialized in manufacturing various of High Precision Chuck. Including two parts: Hydraulic chuck and Pneumatic Chuck. Our main products include Cylinder-Integrated Collect Chuck/Rotary Power Chuck/Expanding Mandrel/Spindle Collect Chuck/Air Diaphragm Chuck/Precision Collect Chuck/3-Jaw Diaphragm Power Chuck/Stationary Chuck etc.

    Our production capacity is now up to 1200 pieces per month. Our goal and core value is “saving refit cost, improving production efficiency”. Providing consistently high quality products to our customer to meet or exceed the expectations of their “end-user” customers. To accomplish this, we continuously invest in our manufacturing facilities and personnel, keeping both at the leading edge of China-based manufacturing.

    At present, our company has established cooperative relations with many famous enterprises in China, customized various non-standard pneumatic chucks and hydraulic chucks. With our accumulated experience and expertise, the suggestion we offer to our customer will in a professional manner.

    More than professional, Derui will provide you with the most appropriate chucks and services.
